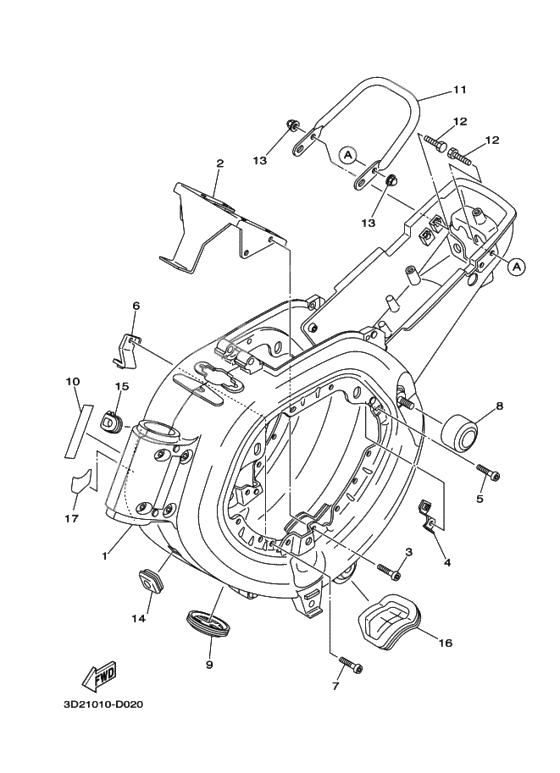

Frame
Frame
FRAME COMP (Ref #1)
1
Part #3D2-21110-10-00
Bracket, Battery Box (Ref #2)
2
Part #3D2-21393-00-00
BOLT (Ref #3)
3
Part #92017-06010-00
LID (Ref #4)
4
Part #3D2-2116E-00-00
Stay, horn (Ref #6)
6
Part #3D2-2134Y-00-00
PROTECTOR (Ref #8)
8
Part #3D2-2117G-00-00
LID (Ref #9)
9
Part #3D2-2143A-00-00
. SEAL (Ref #10)
10
Part #3D2-21268-00-00
Handle, Standing (Ref #11)
11
Part #3D2-21165-00-00
BOLT (Ref #12)
12
Part #97017-08016-00
BOLT (Ref #12)
12
Part #97017-08016-00
BOLT (Ref #12)
12
Part #97017-08016-00
BOLT (Ref #12)
12
Part #97017-08016-00
Гайка корончатая (Ref #13)
13
Part #90176-08068-00
Гайка корончатая (Ref #13)
13
Part #90176-08068-00
Гайка корончатая (Ref #13)
13
Part #90176-08068-00
Гайка корончатая (Ref #13)
13
Part #90176-08068-00
PLATE, SEAL DAMPER (Ref #14)
14
Part #3D2-82595-00-00
Grommet, Cable (Ref #15)
15
Part #3D2-26288-00-00
PLATE, SEAL DAMPER (Ref #16)
16
Part #3D2-82598-00-00
. SEAL (Ref #17)
17
Part #3D2-21269-00-00
