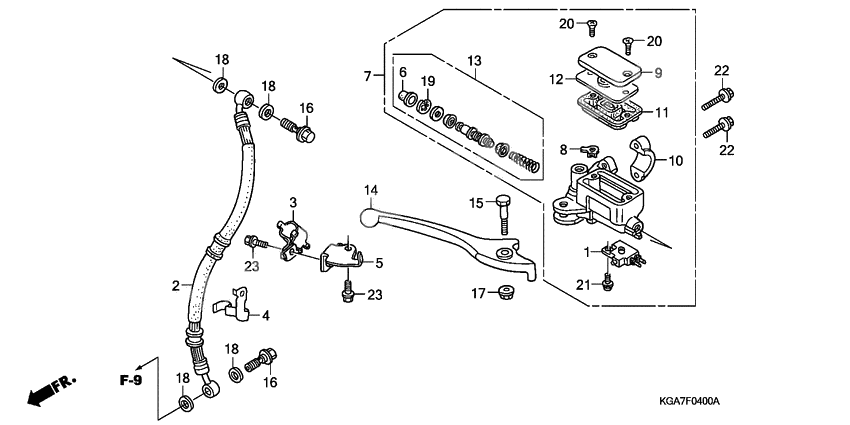

Fr. brake master cylinder
Fr. brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose comp. (Ref #2)
2
Part #45126-KGA-B21
Clamper (Ref #3)
3
Part #45155-KGA-E00
Clamper (Ref #4)
4
Part #45156-KGA-E00
STAY (Ref #5)
5
Part #45160-KGA-E00
Ботинок (Ref #6)
6
Part #45504-410-003
Cylinder sub assy. (Ref #7)
7
Part #45510-KGA-E01
PROTECTOR (Ref #8)
8
Part #45512-MA6-006
Cap, master cylinder (Ref #9)
9
Part #45513-HA2-006
HOLDER (Ref #10)
10
Part #45517-166-006
DIAPHRAGM (Ref #11)
11
Part #45520-MG7-006
Пластина (Ref #12)
12
Part #45521-HA2-006
Master cylinder set (Ref #13)
13
Part #45530-MN9-305
Lever (Ref #14)
14
Part #53175-KBW-900
BOLT (Ref #15)
15
Part #90114-166-006
Bolt, oil (10x22) (Ref #16)
16
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #16)
16
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #16)
16
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #16)
16
Part #90145-MS9-612
Nut, flange (6mm) (Ref #17)
17
Part #90208-GHR-630
Circlip (Ref #19)
19
Part #90651-MA5-671
Болт (Ref #20)
20
Part #93600-040120G
Болт (Ref #20)
20
Part #93600-040120G
Болт (Ref #20)
20
Part #93600-040120G
Болт (Ref #20)
20
Part #93600-040120G
Screw-washer (Ref #21)
21
Part #93893-040-120-7
BOLT (Ref #22)
22
Part #95701-060-220-7
BOLT (Ref #22)
22
Part #95701-060-220-7
BOLT (Ref #22)
22
Part #95701-060-220-7
BOLT (Ref #22)
22
Part #95701-060-220-7
BOLT (Ref #23)
23
Part #96001-060-120-7
BOLT (Ref #23)
23
Part #96001-060-120-7
BOLT (Ref #23)
23
Part #96001-060-120-7
BOLT (Ref #23)
23
Part #96001-060-120-7
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MASTER CYLINDER SET / Ремкомплект главного тормозного цилиндра, 45530MN9305, 45530-MN9-305, 45530 MN9 305, HONDA MOTO
Цена: 4 900.00 р.
Доступно: 2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
