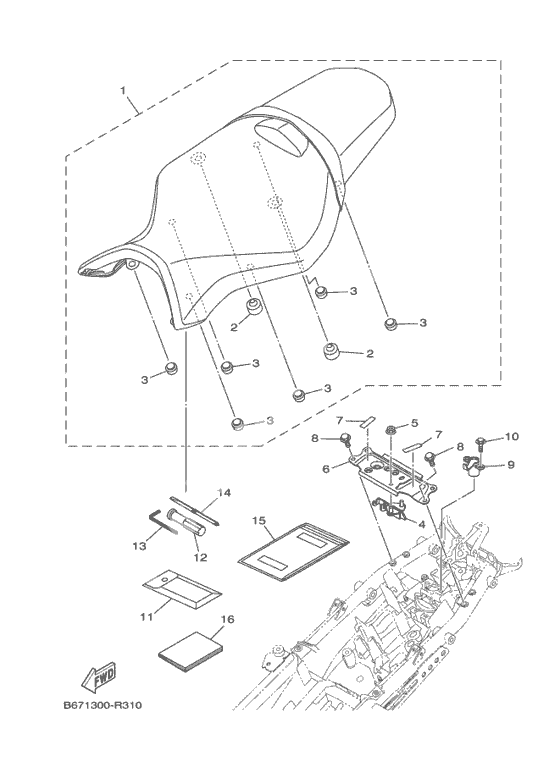

Сиденье
Сиденье
Сиденье (Ref #1)
1
Part #B67-24730-01-00
Упор (Ref #2)
2
Part #4GL-27114-00-00
Упор (Ref #2)
2
Part #4GL-27114-00-00
Упор (Ref #2)
2
Part #4GL-27114-00-00
Упор (Ref #2)
2
Part #4GL-27114-00-00
Замок сиденья (исполнительный механизм) (Ref #4)
4
Part #4BP-24780-00-00
Nut, flange (Ref #5)
5
Part #95780-06500-00
Крепление замка (Ref #6)
6
Part #B67-2478X-00-00
Валик (Ref #7)
7
Part #3P6-28228-00-00
Валик (Ref #7)
7
Part #3P6-28228-00-00
Валик (Ref #7)
7
Part #3P6-28228-00-00
Валик (Ref #7)
7
Part #3P6-28228-00-00
BOLT (Ref #8)
8
Part #95022-06016-00
BOLT (Ref #8)
8
Part #95022-06016-00
BOLT (Ref #8)
8
Part #95022-06016-00
BOLT (Ref #8)
8
Part #95022-06016-00
Фиксатор (Ref #9)
9
Part #1RC-W2470-00-00
BOLT (Ref #10)
10
Part #95022-06014-00
Инструменты, комплект (Ref #11)
11
Part #B67-28100-00-00
Ручка отвёртки (Ref #12)
12
Part #2H7-28151-00-00
Ключ (Ref #13)
13
Part #23P-28164-00-00
Отвёртка (Ref #14)
14
Part #137-28152-00-00
Крышка (Ref #15)
15
Part #4KG-28186-10-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-F8199-D0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-28199-E0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-28199-F0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-28199-G0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-28199-H0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-28199-S0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-F8199-M0-00
MANUAL,OWNER'S (Ref #16)
16
Part #B67-F8199-P0-00
