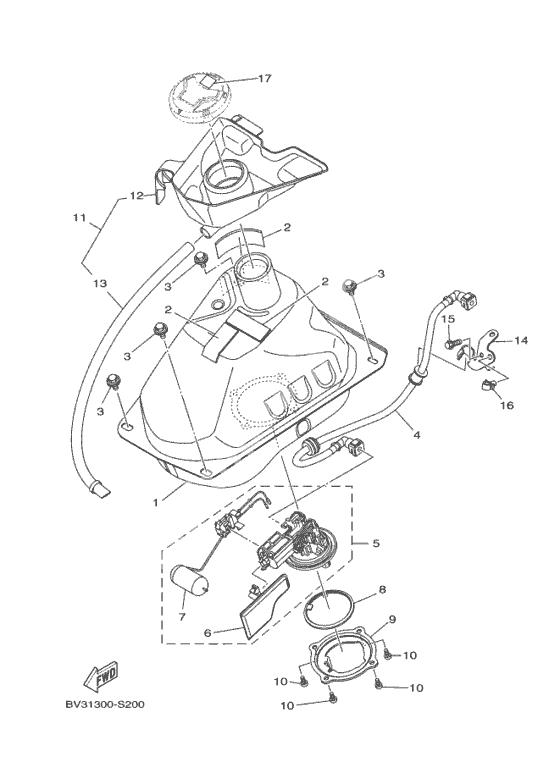

Топливный бак
Топливный бак
Fuel Tank Comp (Ref #1)
1
Part #2DP-F4110-00-00
Pipe, Fuel 1 (Ref #4)
4
Part #2DP-E3971-00-00
Fuel Pump Comp (Ref #5)
5
Part #2DP-E3907-00-00
Filter, Fuel Suction (Ref #6)
6
Part #54P-E3915-00-00
Sender Unit Assy, Fuel Meter (Ref #7)
7
Part #2DP-H5752-00-00
Seal (Ref #8)
8
Part #54P-F414G-10-00
Bracket, Fuel Pump (Ref #9)
9
Part #2DP-F4491-00-00
Cover, Filler (Ref #11)
11
Part #2DP-F414A-00-00
Cover (Ref #12)
12
Part #2DP-F4217-00-00
Pipe, overflow (Ref #13)
13
Part #2DP-F4318-00-00
Holder (Ref #14)
14
Part #2DP-F419A-00-00
BOLT (Ref #15)
15
Part #90105-06696-00
Clamp (Ref #16)
16
Part #90464-07805-00
Label, Fuel (Ref #17)
17
Part #BB8-F817K-00-00
