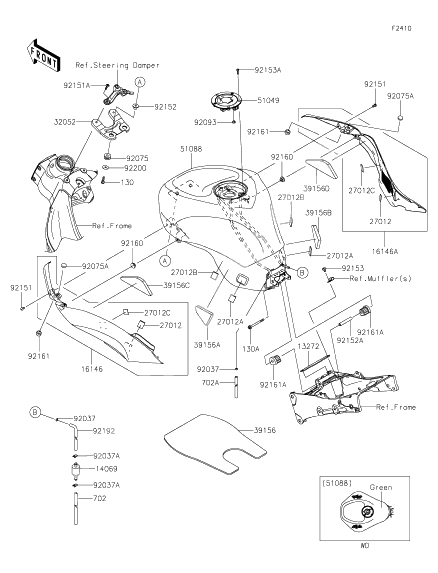

Fuel tank

Fuel tank

Fuel tank
BOLT-FLANGE,6X70 (Ref #130A)
130A
Part #130BB0670
ボルト(ツバツキ)，6x22 (Ref #130)
130
Part #130BA0622
TUBE-RUBBER,6X850 (Ref #702A)
702A
Part #702A06850
Tube-rubber,6x9x660 (Ref #702)
702
Part #702A06660
PLATE,FUEL TANK,RR (Ref #13272)
13272
Part #13272-0505
BREATHER,FUEL TANK (Ref #14069)
14069
Part #14069-1004
COVER-ASSY,KNEE GRIP,RH (Ref #16146A)
16146A
Part #16146-0113
COVER-ASSY,KNEE GRIP,LH (Ref #16146)
16146
Part #16146-0112
HOOK (Ref #27012A)
27012A
Part #27012-0115
HOOK (Ref #27012A)
27012A
Part #27012-0115
HOOK (Ref #27012A)
27012A
Part #27012-0115
HOOK (Ref #27012A)
27012A
Part #27012-0115
HOOK (Ref #27012C)
27012C
Part #27012-0171
HOOK (Ref #27012C)
27012C
Part #27012-0171
HOOK (Ref #27012C)
27012C
Part #27012-0171
HOOK (Ref #27012C)
27012C
Part #27012-0171
HOOK (Ref #27012B)
27012B
Part #27012-0170
HOOK (Ref #27012B)
27012B
Part #27012-0170
HOOK (Ref #27012B)
27012B
Part #27012-0170
HOOK (Ref #27012B)
27012B
Part #27012-0170
HOOK (Ref #27012)
27012
Part #27012-0091
HOOK (Ref #27012)
27012
Part #27012-0091
HOOK (Ref #27012)
27012
Part #27012-0091
HOOK (Ref #27012)
27012
Part #27012-0091
BRACKET-TANK,FR (Ref #32052)
32052
Part #32052-0131
PAD,KNEE GRIP,RH (Ref #39156D)
39156D
Part #39156-0512
PAD,FUEL TANK (Ref #39156)
39156
Part #39156-0469
PAD,KNEE GRIP,LH (Ref #39156C)
39156C
Part #39156-0511
PAD,FUEL TANK,RH (Ref #39156B)
39156B
Part #39156-0508
PAD,FUEL TANK,LH (Ref #39156A)
39156A
Part #39156-0507
/ap-tank,fuel (Ref #51049)
51049
Part #51049-0030
Tank-comp-fuel,l.green (Ref #51088)
51088
Part #51088-5046-777
CLAMP,TUBE (Ref #92037)
92037
Part #92037-010
CLAMP,TUBE (Ref #92037)
92037
Part #92037-010
CLAMP,TUBE (Ref #92037)
92037
Part #92037-010
CLAMP,TUBE (Ref #92037)
92037
Part #92037-010
CLAMP,TUBE (Ref #92037A)
92037A
Part #92037-147
CLAMP,TUBE (Ref #92037A)
92037A
Part #92037-147
CLAMP,TUBE (Ref #92037A)
92037A
Part #92037-147
CLAMP,TUBE (Ref #92037A)
92037A
Part #92037-147
DAMPER (Ref #92075A)
92075A
Part #92075-1983
DAMPER (Ref #92075A)
92075A
Part #92075-1983
DAMPER (Ref #92075A)
92075A
Part #92075-1983
DAMPER (Ref #92075A)
92075A
Part #92075-1983
DAMPER,10X24X12 (Ref #92075)
92075
Part #92075-1690
Oil seal,fuel tank ca (Ref #92093)
92093
Part #92093-1030
Болт ,6X30 (Ref #92151A)
92151A
Part #92151-1605
Bolt,socket,6x12 (Ref #92151)
92151
Part #92151-1219
Bolt,socket,6x12 (Ref #92151)
92151
Part #92151-1219
Bolt,socket,6x12 (Ref #92151)
92151
Part #92151-1219
Bolt,socket,6x12 (Ref #92151)
92151
Part #92151-1219
COLLAR (Ref #92152)
92152
Part #92152-0091
カラ-,6.8X10X60 (Ref #92152A)
92152A
Part #92152-1182
Болт ,6X10 (Ref #92153)
92153
Part #92153-0410
Bolt，socket，5x16 (Ref #92153A)
92153A
Part #92153-1616
DAMPER (Ref #92160)
92160
Part #92160-1613
DAMPER (Ref #92160)
92160
Part #92160-1613
DAMPER (Ref #92160)
92160
Part #92160-1613
DAMPER (Ref #92160)
92160
Part #92160-1613
ダンパ,フユ-エル タンク,RR (Ref #92161A)
92161A
Part #92161-1330
ダンパ,フユ-エル タンク,RR (Ref #92161A)
92161A
Part #92161-1330
ダンパ,フユ-エル タンク,RR (Ref #92161A)
92161A
Part #92161-1330
ダンパ,フユ-エル タンク,RR (Ref #92161A)
92161A
Part #92161-1330
DAMPER (Ref #92161)
92161
Part #92161-0738
DAMPER (Ref #92161)
92161
Part #92161-0738
DAMPER (Ref #92161)
92161
Part #92161-0738
DAMPER (Ref #92161)
92161
Part #92161-0738
HOLDER (Ref #92192)
92192
Part #92192-0798
Шайба,6.5X22X1.6 (Ref #92200)
92200
Part #92200-1087
+ -
