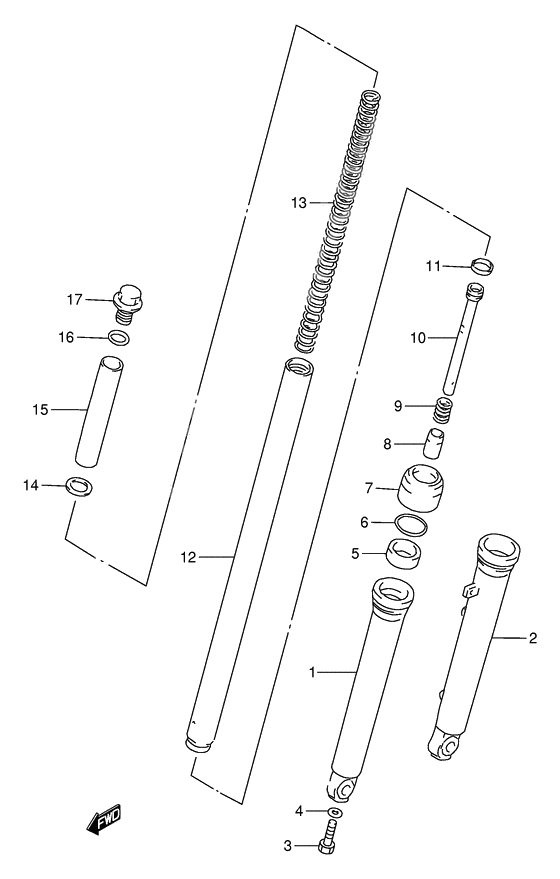

Front damper
Front damper
TUBE,OUTER,R (Ref #1)
1
Part #51131-03431-000
TUBE,OUTER,L (Ref #2)
2
Part #51141-03431-000
BOLT(8X27) (Ref #3)
3
Part #51147-48130-000
GASKET (Ref #4)
4
Part #51148-36011-000
Seal,oil (Ref #5)
5
Part #51153-03400-000
RING,OIL SEAL STOPPER (Ref #6)
6
Part #51156-48130-000
Dust seal (Ref #7)
7
Part #51571-46100-000
PIECE,OIL LOCK (Ref #8)
8
Part #51195-46684-000
SPRING,REBOUND (Ref #9)
9
Part #51177-46100-000
Цилиндр (Ref #10)
10
Part #51146-03400-000
Кольцо (Ref #11)
11
Part #51196-46100-000
TUBE,INNER (Ref #12)
12
Part #51110-46450-000
Пружина (Ref #13)
13
Part #51171-03400-000
JOINT,SPRING (Ref #14)
14
Part #51192-46100-000
SPACER,SPRING (Ref #15)
15
Part #51176-46100-000
O ring (d:2.4,id:17.8) (Ref #16)
16
Part #09280-18004-000
Cap (Ref #17)
17
Part #51351-46190-000
