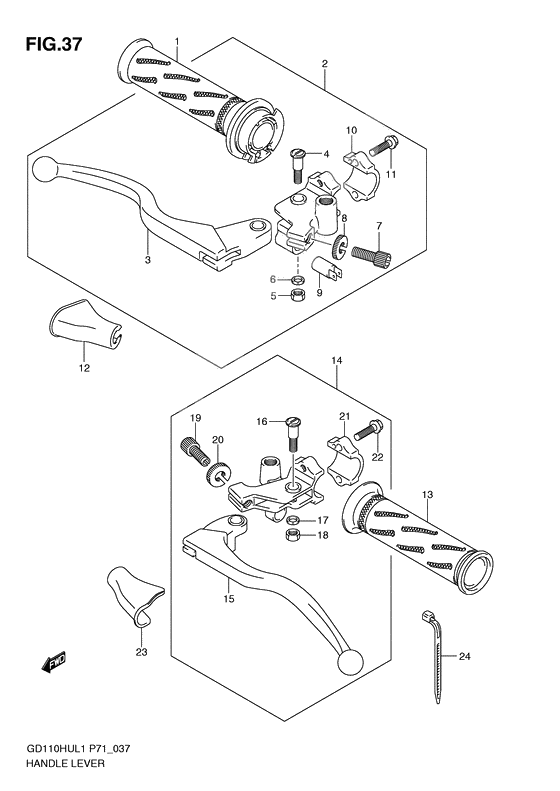

Handle lever
Handle lever
Зажим дросселя (Ref #1)
1
Part #57110-28G10-000
LEVER ASSY,BRAKE (Ref #2)
2
Part #57300-36H00-000
LEVER,BRAKE (Ref #3)
3
Part #57421-36H00-000
BOLT,LEVER SET (Ref #4)
4
Part #57431-45F00-000
Гайка (Ref #5)
5
Part #08310-0006A-000
Пластина замка (Ref #6)
6
Part #08321-0106B-000
Регулятор (Ref #7)
7
Part #57441-45C00-000
NUT,LOCK (Ref #8)
8
Part #57442-45C00-000
Переключатель (Ref #9)
9
Part #57460-45F00-000
Bracket (Ref #10)
10
Part #57512-45F00-000
Bolt (6x20) (Ref #11)
11
Part #01547-0620B-000
COVER,BRAKE LEVER (Ref #12)
12
Part #57341-45F00-000
Рукоятка (Ref #13)
13
Part #57211-45FB0-000
Lever assy,clutch (Ref #14)
14
Part #57500-45F00-000
Рукоятка муфты (Ref #15)
15
Part #57621-45F00-000
Гайка (Ref #18)
18
Part #08310-0006B-000
Регулятор (Ref #19)
19
Part #57441-45F00-000
Гайка (Ref #20)
20
Part #57442-45F00-000
COVER,CLUTCH LEVER (Ref #23)
23
Part #57661-31000-000
Струбцина (Ref #24)
24
Part #09407-12402-000
