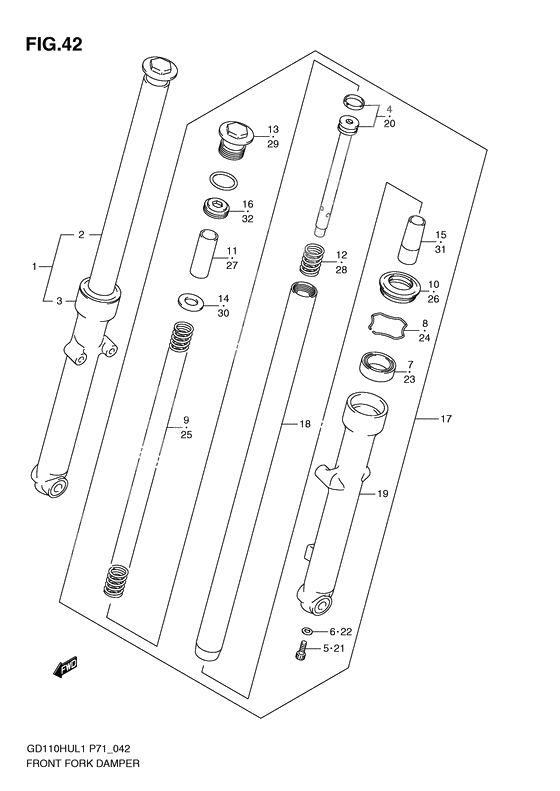

Front
Front
DAMPER ASSY,FR FORK,R (Ref #1)
1
Part #51103-36H00-000
TUBE,INNER (Ref #2)
2
Part #51110-36H00-000
TUBE,OUTER,R (Ref #3)
3
Part #51130-36H00-000
CYLINDER,FR FORK (Ref #4)
4
Part #51146-36H00-000
Bolt (Ref #5)
5
Part #51147-28G60-000
Packing (Ref #6)
6
Part #51148-28G60-000
Seal,oil (Ref #7)
7
Part #51153-36H00-000
RING,SNAP (Ref #8)
8
Part #51156-36H00-000
Пружина (Ref #9)
9
Part #51171-36H00-000
SEAL,DUST (Ref #10)
10
Part #51173-36H00-000
COLLAR,SPRING (Ref #11)
11
Part #51176-36H00-000
SPRING,REBOUND (Ref #12)
12
Part #51177-36H00-000
Cap (Ref #13)
13
Part #51189-36H00-000
Шайба (Ref #14)
14
Part #51192-36H00-000
PIECE,OIL LOCK (Ref #15)
15
Part #51195-36H00-000
Гайка (Ref #16)
16
Part #51353-36H00-000
DAMPER ASSY,FR FORK,L (Ref #17)
17
Part #51104-36H00-000
TUBE,OUTER,L (Ref #19)
19
Part #51140-36H00-000
