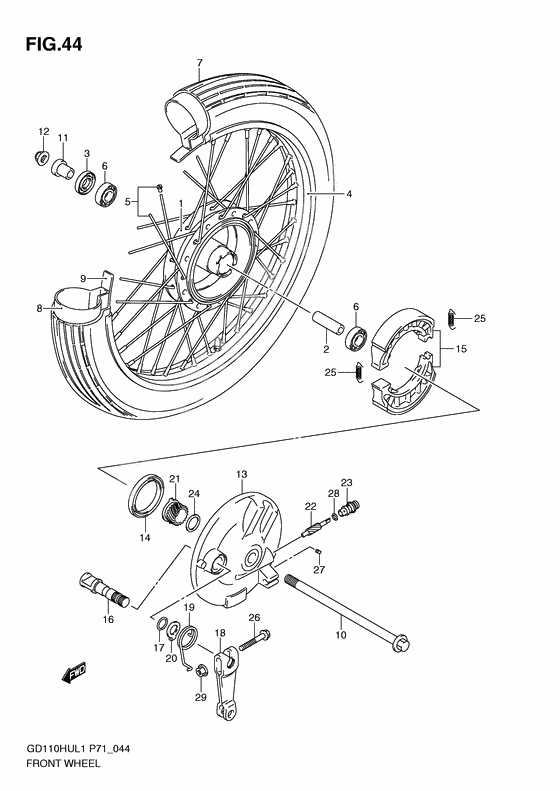

HUB,FR (Ref #1)
1
Part #54110-36H10-000
SPACER,FR HUB BEARING (Ref #2)
2
Part #54731-36H00-000
SEAL,FR HUB (Ref #3)
3
Part #54742-36H00-000
RIM,FR WHEEL(17X1.40) (Ref #4)
4
Part #55311-36H10-000
SPOKE ASSY,FR (Ref #5)
5
Part #55320-36H00-000
Bearing (Ref #6)
6
Part #08143-63017-000
Bearing (Ref #6)
6
Part #08143-63017-000
Bearing (Ref #6)
6
Part #08143-63017-000
Bearing (Ref #6)
6
Part #08143-63017-000
TIRE,FR(2.50 17) (Ref #7)
7
Part #55110-36H00-000
TUBE ASSY,WHEEL INNER (Ref #8)
8
Part #55200-36H00-000
PROTECTOR,WHL INR TUBE (Ref #9)
9
Part #55261-36H10-000
AXLE,FR (Ref #10)
10
Part #54711-36H00-000
SPACER,FR AXLE,R (Ref #11)
11
Part #54741-36H00-000
Nut 12mm (Ref #12)
12
Part #08319-3112A-000
PANEL,FR BRAKE ANCHOR (Ref #13)
13
Part #54210-36H00-000
SEAL,FR BRAKE PANEL OIL (Ref #14)
14
Part #54267-36H00-000
SHOE SET,RR BRAKE (Ref #15)
15
Part #54400-36810-000
CAM,FR BRAKE (Ref #16)
16
Part #54441-36H00-000
SEAL,BRAKE CAM DUST (Ref #17)
17
Part #54443-36H00-000
LEVER,FR BRAKE CAM (Ref #18)
18
Part #54451-36H00-000
SPRING,CAM LEVER RETURN (Ref #19)
19
Part #54484-36H00-000
PLATE,FR BK LINING INDICATOR (Ref #20)
20
Part #54492-36H01-000
DRIVER,SPEEDOMETER GEAR (Ref #21)
21
Part #54610-36H00-000
PINION,SPEEDOMETER(10T) (Ref #22)
22
Part #54621-36H00-000
BUSHING,SPEEDOMETER PINION OUT (Ref #23)
23
Part #54632-010H0-000
WASHER,SPEEDOMETER GEAR THR (Ref #24)
24
Part #54642-36H00-000
SPRING,BRAKE SHOE (Ref #25)
25
Part #55421-36H00-000
SPRING,BRAKE SHOE (Ref #25)
25
Part #55421-36H00-000
SPRING,BRAKE SHOE (Ref #25)
25
Part #55421-36H00-000
SPRING,BRAKE SHOE (Ref #25)
25
Part #55421-36H00-000
BOLT(6X31) (Ref #26)
26
Part #09100-06139-000
SCREW(3X4.3) (Ref #27)
27
Part #09134-03101-A05
Плата (Ref #28)
28
Part #09160-05001-A05
Гайка (Ref #29)
29
Part #08316-1006B-000
-
2054492-36H00-000
PLATE,FR BK LINING INDICATOR
1Replaced by 54492-36H01-000 Доступно: Нет в наличии
