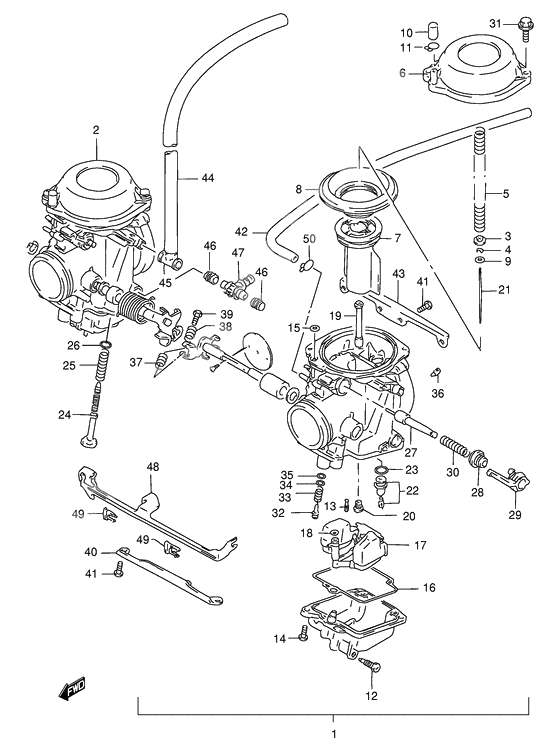

Carburetor assy
Carburetor assy
Carburetor assy, lh (Ref #1)
1
Part #13201-02D81-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02D72-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02D10-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02D21-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02D70-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02DA0-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02DB1-000
CARBURETOR ASSY,L (Ref #1)
1
Part #13201-02D61-000
Carburetor assy, lh (Ref #1)
1
Part #13201-02D50-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02D71-000
Carburetor assy,rh (Ref #2)
2
Part #13202-02D72-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02D21-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02DA1-000
CARBURETOR ASSY,R (Ref #2)
2
Part #13202-02DB1-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02D81-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02D10-000
Carburetor assy, rh (Ref #2)
2
Part #13202-02D61-000
Ring (Ref #3)
3
Part #13382-42A00-000
E ring (Ref #4)
4
Part #13394-40D20-000
Пружина (Ref #5)
5
Part #13417-42A00-000
Пружина (Ref #5)
5
Part #13417-06C00-000
Крышка диафрагмы (Ref #6)
6
Part #13502-45B10-000
Крышка диафрагмы (Ref #6)
6
Part #13502-02D00-000
COVER,DIAPHRAGM (Ref #6)
6
Part #13502-01D00-000
VALVE,PISTON (Ref #7)
7
Part #13501-01D00-000
Valve, piston (Ref #7)
7
Part #13501-02D10-000
Diaphragm (Ref #8)
8
Part #13507-17C02-000
Diaphragm (Ref #8)
8
Part #13507-44B00-000
Ring (Ref #9)
9
Part #13387-47010-000
Cap (Ref #10)
10
Part #13508-17C00-000
Clip (Ref #11)
11
Part #13671-05A40-000
Заглушка дренажная (Ref #12)
12
Part #13247-02340-000
Жиклер пропускной (42.5) (Ref #13)
13
Part #09492-42010-000
Жиклерпроводник (Ref #13)
13
Part #09492-40014-000
Болт (Ref #14)
14
Part #02112-05127-000
O ring (Ref #15)
15
Part #13509-17C00-000
Прокладка крышки поплавковой камеры (Ref #16)
16
Part #13258-44B00-000
Поплавок (Ref #17)
17
Part #13240-01D00-000
O ring (Ref #18)
18
Part #13374-46710-000
JET,NEEDLE(O-2) (Ref #19)
19
Part #09494-00748-000
Жиклер главный (Ref #20)
20
Part #09491-25010-000
JET,MAIN(115) (Ref #20)
20
Part #09491-23011-000
JET,MAIN(117.5) (Ref #20)
20
Part #09491-23017-000
JET,MAIN(127.5) (Ref #20)
20
Part #09491-25011-000
JET,MAIN(120) (Ref #20)
20
Part #09491-24016-000
Жиклер главный (130) (Ref #20)
20
Part #09491-26011-000
JET,MAIN(122.5) (Ref #20)
20
Part #09491-24013-000
Жиклер (Ref #21)
21
Part #13383-01D10-000
Клапан (Ref #22)
22
Part #13370-02D00-000
O RING,NEEDLE VALVE SEAT (Ref #23)
23
Part #13374-35C00-000
Регулятор (Ref #24)
24
Part #13267-14D10-000
Пружина (Ref #25)
25
Part #13375-14D10-000
WASHER (Ref #26)
26
Part #13427-38300-000
BLEEDER (Ref #27)
27
Part #13411-01D00-000
CAP,STARTER (Ref #28)
28
Part #13418-17C00-000
HOLDER,GUIDE (Ref #29)
29
Part #13418-17C10-000
Пружина стартера (Ref #30)
30
Part #13417-09110-000
Болт (Ref #31)
31
Part #02112-7516B-000
Винт топливный (Ref #32)
32
Part #13279-47070-000
Пружина (Ref #33)
33
Part #13268-47070-000
Шайба (Ref #34)
34
Part #13291-29900-000
O RING,PILOT AIR SCREW (Ref #35)
35
Part #13295-29901-000
Жиклер воздушный (Ref #36)
36
Part #09493-26004-000
Жиклер воздушный (1.2) (Ref #36)
36
Part #09493-24007-000
Жиклер (1.4) (Ref #36)
36
Part #09493-28006-000
Пружина (Ref #37)
37
Part #13268-96111-000
Пружина (Ref #38)
38
Part #13271-44B00-000
Болт (Ref #39)
39
Part #13267-44B00-000
Plate (Ref #40)
40
Part #13628-01D00-000
HOSE(5X9X350) (Ref #42)
42
Part #13684-01D10-000
Plate (Ref #43)
43
Part #13628-01D10-000
HOSE(7X11X600) (Ref #44)
44
Part #09354-70113-600
Hose (Ref #45)
45
Part #13684-20C10-000
Сальник (Ref #46)
46
Part #13673-44B00-000
Сальник (Ref #46)
46
Part #13673-44B00-000
Сальник (Ref #46)
46
Part #13673-44B00-000
Сальник (Ref #46)
46
Part #13673-44B00-000
Золотник (Ref #47)
47
Part #13685-44B00-000
Lever (Ref #48)
48
Part #13413-01D00-000
Holder (Ref #49)
49
Part #13439-17C00-000
Holder (Ref #49)
49
Part #13439-17C00-000
Holder (Ref #49)
49
Part #13439-17C00-000
Holder (Ref #49)
49
Part #13439-17C00-000
Clip (Ref #50)
50
Part #09401-08410-000
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
