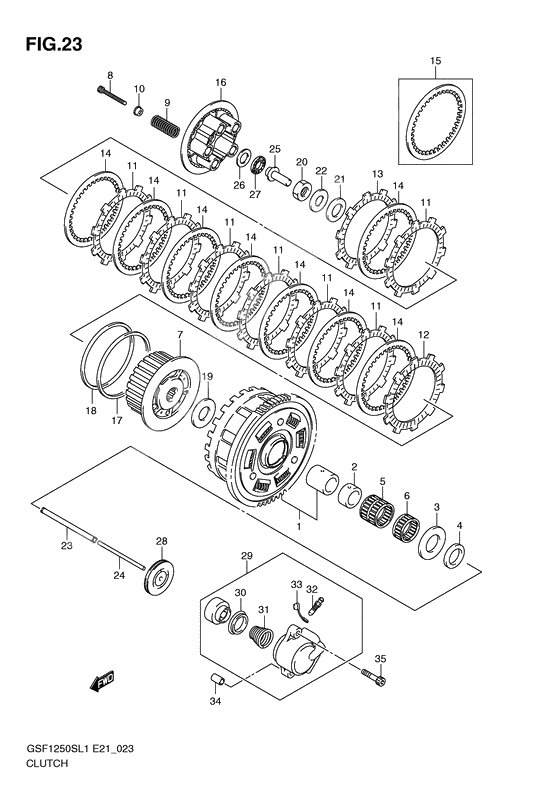

Сцепление
Сцепление
GEAR ASSY,PRI DRIVEN(NT:83) (Ref #1)
1
Part #21200-18820-000
SPACER,OIL PUMP DRIVE SPROCKET (Ref #2)
2
Part #21253-01H10-000
Шайба (Ref #3)
3
Part #09160-25073-000
Шайба (Ref #4)
4
Part #09160-25036-000
BEARING(35X40X26.8) (Ref #5)
5
Part #09263-35015-000
BEARING(35X40X12) (Ref #6)
6
Part #09263-35045-000
HUB,CLUTCH SLEEVE (Ref #7)
7
Part #21410-18H00-000
BOLT,CLUTCH SPRING (Ref #8)
8
Part #21412-18H00-000
Пружина (Ref #9)
9
Part #21413-18H00-000
Шайба (Ref #10)
10
Part #21414-29F00-000
ДИСК СЦЕПЛЕНИЯ АКПП (Ref #12)
12
Part #21442-24F00-000
ДИСК СЦЕПЛЕНИЯ АКПП (Ref #13)
13
Part #21441-24F10-000
ДИСК КПП (Ref #15)
15
Part #21451-24F10-000
DISC,CLUTCH PRESSURE (Ref #16)
16
Part #21462-18H00-000
SEAT,WAVE WASHER (Ref #17)
17
Part #21471-24F00-000
Шайба (Ref #18)
18
Part #21472-24F00-000
WASHER (Ref #19)
19
Part #09160-25056-000
Шайба (Ref #20)
20
Part #09159-24010-000
SHIM(25X38X1) (Ref #21)
21
Part #09181-25223-000
ШАЙБА ФОРСУНКИ (Ref #22)
22
Part #09164-24008-000
ROD,CLUTCH PUSH,R(L:169) (Ref #23)
23
Part #23110-18H00-000
ROD,CLUTCH PUSH,L(L:138) (Ref #24)
24
Part #23111-42F00-000
PIECE,CLUTCH PUSH (Ref #25)
25
Part #23121-31E20-000
Шайба (Ref #26)
26
Part #09160-15045-000
Подшипник 15X28X2 (Ref #27)
27
Part #09263-15003-000
SEAL,OIL(6X52X10) (Ref #28)
28
Part #09283-06011-000
Cylinder,clutch (Ref #29)
29
Part #23160-18H11-000
Стакан (Ref #30)
30
Part #23163-05A00-000
Пружина (Ref #31)
31
Part #23164-05A00-000
BLEEDER (Ref #32)
32
Part #59121-01A00-000
CAP,BLEEDER (Ref #33)
33
Part #59122-01A00-000
Стопор (Ref #34)
34
Part #04211-09129-000
Болт (Ref #35)
35
Part #09103-06251-000
-
-
Цена: 1 450.00 р.
Доступно: 2
-
-
-
Цена: 910.00 р.
Доступно: 1
-
-
2923160-18H10-000
Cylinder,clutch
1Replaced by 23160-18H11-000 Доступно: Нет в наличии
-
-
ПРУЖИНА СЦЕПЛЕНИЯ / SPRING,CLUTCH CYLINDER, 2316405A00000, 23164-05A00, 23164 05A00, SUZUKI
(SUZUKI)
Цена: 320.00 р.
Доступно: 4
-
