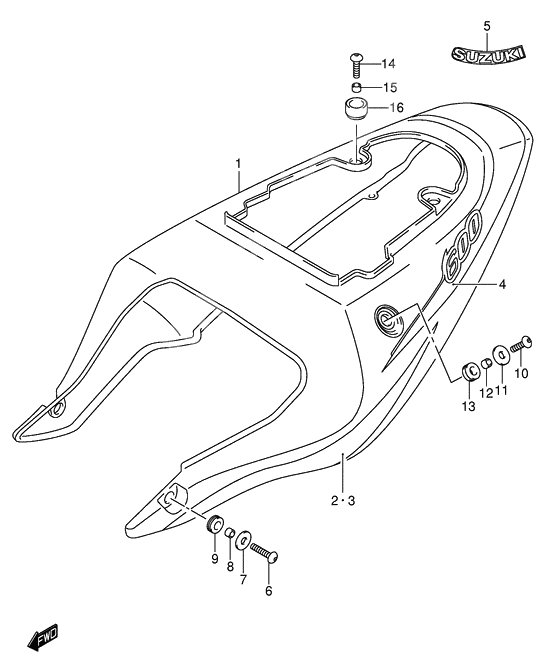

Frame cover Model k2
Frame cover Model k2
COVER ASSY,FRAME(WHITE) (Ref #1)
1
Part #47100-39F20-0JW
COVER ASSY,FRAME(BLACK) (Ref #1)
1
Part #47100-39F20-Y7L
COVER ASSY,FRAME(BLUE) (Ref #1)
1
Part #47100-39F20-YC2
TAPE,FRAME COVER,R(SILVER) (Ref #2)
2
Part #68135-35F50-YD8
TAPE,FRAME COVER,R(BLUE) (Ref #2)
2
Part #68135-35F50-1LE
TAPE,FRAME COVER,R(YELLOW) (Ref #2)
2
Part #68135-35F50-Y9H
TAPE,FRAME COVER,L(BLUE) (Ref #3)
3
Part #68145-35F50-1LE
TAPE,FRAME COVER,L(YELLOW) (Ref #3)
3
Part #68145-35F50-Y9H
TAPE,FRAME COVER,L(SILVER) (Ref #3)
3
Part #68145-35F50-YD8
TAPE,FRAME COVER (Ref #4)
4
Part #68135-39F20-HC3
TAPE,FRAME COVER (Ref #4)
4
Part #68135-39F20-FS8
TAPE,FRAME COVER (Ref #4)
4
Part #68135-39F20-HC2
Эмблема (Ref #5)
5
Part #68131-39F00-YD8
EMBLEM,SUZUKI (Ref #5)
5
Part #68131-39F00-019
Болт (Ref #6)
6
Part #09139-06042-000
Шайба (Ref #7)
7
Part #09160-06047-000
Кольцо/шайба (Ref #8)
8
Part #09180-06283-000
Валик (Ref #9)
9
Part #47161-35F00-000
Болт (Ref #10)
10
Part #09139-06029-000
Валик (Ref #13)
13
Part #47161-35F10-000
Кольцо/шайба (Ref #15)
15
Part #09180-06286-000
Cushion (Ref #16)
16
Part #09320-10045-000
