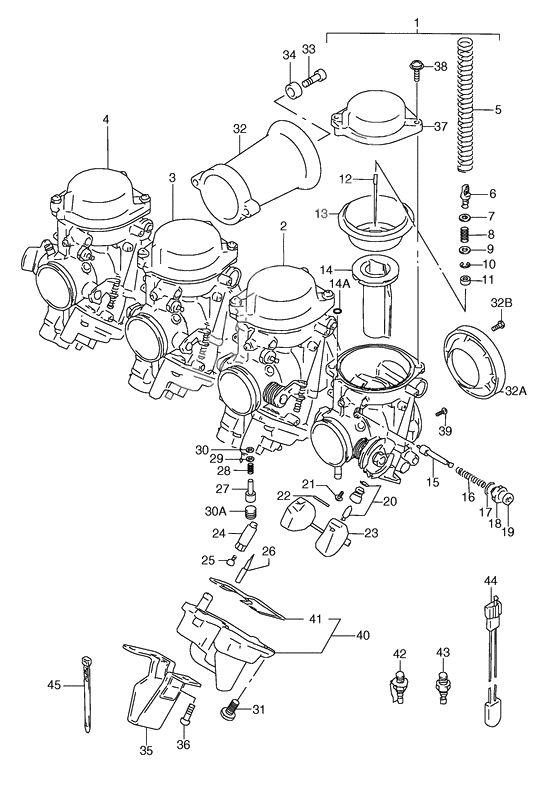

Carburetor assy Model w/x/y
Carburetor assy Model w/x/y
Carburetor assy, lh (Ref #1)
1
Part #13201-34EF0-000
Carburetor assy, lh (Ref #1)
1
Part #13201-34EA0-000
Carburetor assy, lh (Ref #1)
1
Part #13201-34EG0-000
Карбюратор (Ref #1)
1
Part #13201-34E70-000
CARBURETOR ASSY,L (Ref #1)
1
Part #13201-34E80-000
CARBURETOR ASSY,L (Ref #1)
1
Part #13201-34E60-000
Carburetor assy, ml (Ref #2)
2
Part #13202-34EA0-000
Carburetor assy, ml (Ref #2)
2
Part #13202-34EF0-000
Carburetor assy, ml (Ref #2)
2
Part #13202-34EG0-000
Карбюратор (Ref #2)
2
Part #13202-34E70-000
Carburetor assy, ml (Ref #2)
2
Part #13202-34E80-000
CARBURETOR ASSY,ML (Ref #2)
2
Part #13202-34E60-000
CARBURETOR ASSY,MR (Ref #3)
3
Part #13203-34E80-000
CARBURETOR ASSY,MR (Ref #3)
3
Part #13203-34E60-000
Carburetor assy, mr (Ref #3)
3
Part #13203-34EF0-000
Carburetor assy, mr (Ref #3)
3
Part #13203-34EA0-000
Carburetor assy, mr (Ref #3)
3
Part #13203-34EG0-000
Карбюратор (Ref #3)
3
Part #13203-34E70-000
Carburetor assy, rh (Ref #4)
4
Part #13204-34EG0-000
Carburetor assy, rh (Ref #4)
4
Part #13204-34EF0-000
Carburetor assy, rh (Ref #4)
4
Part #13204-34EA0-000
Карбюратор (Ref #4)
4
Part #13204-34E70-000
CARBURETOR ASSY,R (Ref #4)
4
Part #13204-34E80-000
CARBURETOR ASSY,R (Ref #4)
4
Part #13204-34E60-000
Пружина (Ref #5)
5
Part #13573-34E00-000
Holder (Ref #6)
6
Part #13418-33E00-000
O RING(D:1.9,ID:4.8) (Ref #7)
7
Part #09280-05004-000
Пружина (Ref #8)
8
Part #13481-33E00-000
Шайба (Ref #9)
9
Part #13382-44030-000
E RING,MULTIPLE JET NOZZLE (Ref #10)
10
Part #13394-17E60-000
Ring (Ref #11)
11
Part #13387-44030-000
Жиклер игольчатый (Ref #12)
12
Part #13383-34E70-000
Жиклер (Ref #12)
12
Part #13383-34E80-000
Жиклер (Ref #12)
12
Part #13383-34E60-000
Жиклер игольчатый (Ref #12)
12
Part #13383-34E10-000
Diaphragm (Ref #13)
13
Part #13507-17C02-000
O ring (Ref #14A)
14A
Part #13295-33010-000
VALVE,PISTON (Ref #14)
14
Part #13501-34E00-000
BLEEDER (Ref #15)
15
Part #13411-05300-000
Плунжер (Ref #15)
15
Part #13411-34EC0-000
Пружина (Ref #16)
16
Part #13417-26D00-000
O ring (Ref #17)
17
Part #13278-47090-000
Держатель (Ref #18)
18
Part #13418-44080-000
CAP,STARTER VALVE (Ref #19)
19
Part #13682-31210-000
Клапан (Ref #20)
20
Part #13370-33E80-000
Болт (Ref #21)
21
Part #13602-05A10-000
PIN,FLOAT (Ref #22)
22
Part #13254-92910-000
Поплавок (Ref #23)
23
Part #13250-33E00-000
Держатель двигателя (Ref #24)
24
Part #13385-33E00-000
M/j 132.5 (n102 (Ref #25)
25
Part #09491-26019-000
M/j 130 (n10222 (Ref #25)
25
Part #09491-26016-000
Жиклер главный (135) (Ref #25)
25
Part #09491-27008-000
Жиклерпроводник (Ref #26)
26
Part #09492-12008-000
Винт топливный (Ref #27)
27
Part #13279-33E00-000
Пружина (Ref #28)
28
Part #13268-48700-000
Шайба (Ref #29)
29
Part #13291-29900-000
Plug (Ref #30A)
30A
Part #13281-05A00-000
O RING,PILOT AIR SCREW (Ref #30)
30
Part #13295-29901-000
Болт (Ref #31)
31
Part #02112-05127-000
Заглушка (Ref #32)
32
Part #13667-34E60-000
Болт (Ref #32B)
32B
Part #02112-04107-000
Заглушка (Ref #32A)
32A
Part #13667-34E00-000
Болт (Ref #33)
33
Part #13602-18E20-000
Ring (Ref #34)
34
Part #13663-34E60-000
Bracket (Ref #35)
35
Part #13454-34E60-000
COVER ASSY,DIAPHRAGM (Ref #37)
37
Part #13502-34E20-000
Крышка (Ref #37)
37
Part #13502-34E00-000
Болт (Ref #38)
38
Part #13247-33E00-000
Жиклер главный 140 (Ref #39)
39
Part #09491-28011-000
BODY ASSY,FLOAT,R (Ref #40)
40
Part #13245-34E10-000
BODY ASSY,FLOAT,L (Ref #40)
40
Part #13245-34E00-000
O ring (Ref #41)
41
Part #13258-33E00-000
Heater, carburetor (Ref #43)
43
Part #13650-25E01-000
THERMO SWITCH,CARB HEATER (Ref #44)
44
Part #13655-25E00-000
Clamp (Ref #45)
45
Part #09407-14403-000
-
2509491-26013-000
M/j 132.5 (n102
2Replaced by 09491-26019-000 Доступно: Нет в наличии
-
3013295-29900-000
O RING,PILOT AIR SCREW
4Replaced by 13295-29901-000 Доступно: Нет в наличии
-
-
Цена: 670.00 р.
Доступно: 0
-
-
4313651-25E01-000
Heater, carburetor
3Replaced by 13650-25E01-000 Доступно: Нет в наличии
