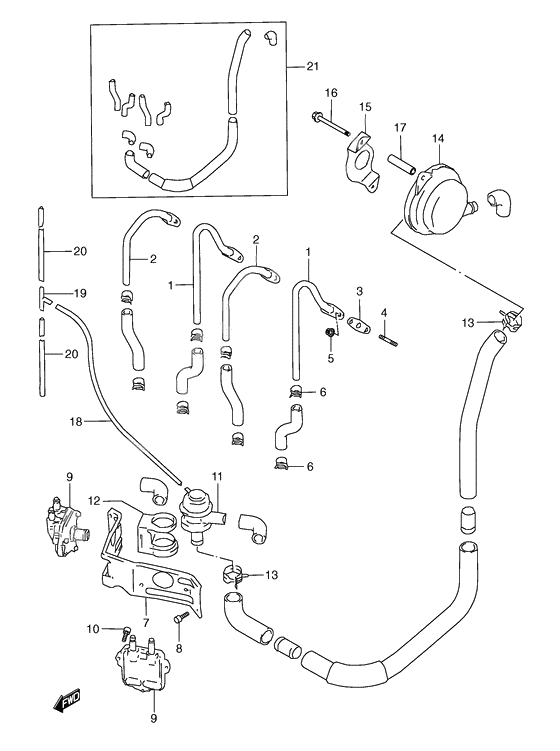

2nd air Model v e18, e39
2nd air Model v e18, e39
Pipe comp,2nd a (Ref #1)
1
Part #18410-33E00-000
Pipe comp,2nd a (Ref #1)
1
Part #18410-33E00-000
Pipe comp,2nd a (Ref #1)
1
Part #18410-33E00-000
Pipe comp,2nd a (Ref #1)
1
Part #18410-33E00-000
Pipe comp,2nd a (Ref #2)
2
Part #18420-33E00-000
Pipe comp,2nd a (Ref #2)
2
Part #18420-33E00-000
Pipe comp,2nd a (Ref #2)
2
Part #18420-33E00-000
Pipe comp,2nd a (Ref #2)
2
Part #18420-33E00-000
Прокладка (Ref #3)
3
Part #18441-45C01-000
Bolt (Ref #4)
4
Part #01421-0616A-000
Гайка (Ref #5)
5
Part #08316-1006B-000
Clip (Ref #6)
6
Part #09401-13417-000
Clip (Ref #6)
6
Part #09401-13417-000
Clip (Ref #6)
6
Part #09401-13417-000
Clip (Ref #6)
6
Part #09401-13417-000
Bracket comp,2n (Ref #7)
7
Part #18750-33E00-000
Болт (Ref #8)
8
Part #09103-06285-000
VALVE ASSY,2ND AIR REED (Ref #9)
9
Part #18450-48B00-000
VALVE ASSY,2ND AIR REED (Ref #9)
9
Part #18450-48B00-000
VALVE ASSY,2ND AIR REED (Ref #9)
9
Part #18450-48B00-000
VALVE ASSY,2ND AIR REED (Ref #9)
9
Part #18450-48B00-000
Bolt (Ref #10)
10
Part #07130-05167-000
(ca)valve assy (Ref #11)
11
Part #18510-46E00-000
CUSHION,2ND AIR VALVE (Ref #12)
12
Part #18487-01D00-000
Clamp(ca) (Ref #13)
13
Part #09401-26408-000
Clamp(ca) (Ref #13)
13
Part #09401-26408-000
Clamp(ca) (Ref #13)
13
Part #09401-26408-000
Clamp(ca) (Ref #13)
13
Part #09401-26408-000
Cleaner assy, 2nd air (Ref #14)
14
Part #18700-17C03-000
Holder,2nd air (Ref #15)
15
Part #18761-41C00-000
Bolt (Ref #16)
16
Part #01550-0660A-000
Кольцо/шайба (Ref #17)
17
Part #09180-06130-000
Шланг 4X7X600 (Ref #18)
18
Part #09359-40701-600
Соединение 3-х стороннее (Ref #19)
19
Part #09367-06002-000
Шланг топливный (Ref #20)
20
Part #44421-13ER0-000
Шланг топливный (Ref #20)
20
Part #44421-13ER0-000
Шланг топливный (Ref #20)
20
Part #44421-13ER0-000
Шланг топливный (Ref #20)
20
Part #44421-13ER0-000
HOSE SET,2ND AIR (Ref #21)
21
Part #18410-33810-000
-
2009355-50105-600
Шланг топливный
2Replaced by 44421-13ER0-000 Доступно: Нет в наличии
