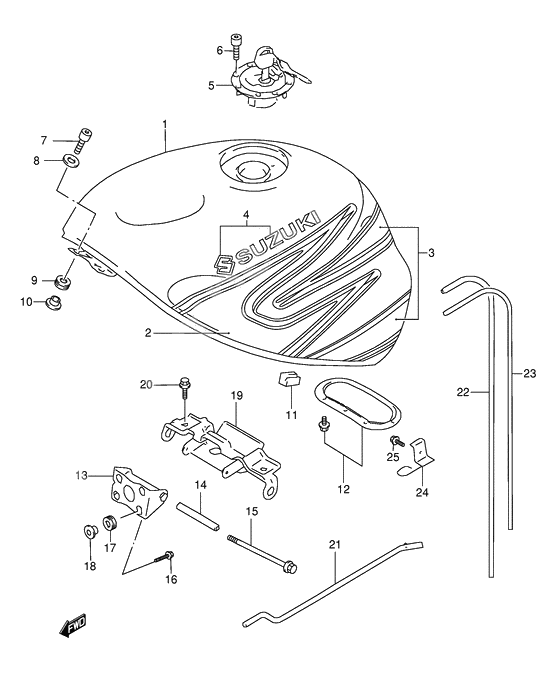

Tank fuel Model y for bp6
Tank fuel Model y for bp6
Бак (Ref #1)
1
Part #44100-34EG0-BP6
Tape set, fuel tank front (Ref #2)
2
Part #68110-34E60-CR9
Tape set, fuel tank rear (Ref #3)
3
Part #68110-34E70-CR9
Emblem (Ref #4)
4
Part #68111-34E01-CT1
CAP SET,FUEL TANK (Ref #5)
5
Part #44200-33820-000
BOLT(5X20) (Ref #6)
6
Part #09106-05017-000
Болт (Ref #7)
7
Part #09139-06029-000
Шайба 6.5X18X1 (Ref #8)
8
Part #09160-06084-000
Cushion (Ref #9)
9
Part #09320-09009-000
Кольцо/шайба (Ref #10)
10
Part #09169-06062-000
CUSHION,FUEL TANK SIDE (Ref #11)
11
Part #44541-33E00-000
PACKING SET,FUEL PUMP (Ref #12)
12
Part #44590-02820-000
Bracket comp,fu (Ref #13)
13
Part #44530-33E01-000
SPACER,FUEL TANK RR (Ref #14)
14
Part #44561-33E10-000
Bolt (Ref #15)
15
Part #01550-0895B-000
Bolt(6x20) (Ref #16)
16
Part #09116-06152-000
Валик (Ref #17)
17
Part #09320-08001-000
Bracket comp,fu (Ref #19)
19
Part #44550-33E00-000
Болт крепёжный (Ref #20)
20
Part #01550-0816B-000
Болт крепёжный (Ref #20)
20
Part #01550-0816A-000
Stay, fuel tank (Ref #21)
21
Part #44574-33E01-000
Шланг топливный (Ref #22)
22
Part #44420-44AR0-000
Валик кабеля дистанционного управления (Ref #23)
23
Part #09352-70103-600
Guide comp,drai (Ref #24)
24
Part #44480-33E0V-000
Bolt (Ref #25)
25
Part #01550-0612B-000
Bolt (Ref #25)
25
Part #01550-0612A-000
-
1344530-33E00-000
Bracket comp,fu
1Replaced by 44530-33E01-000 Доступно: Нет в наличии
-
2001550-08163-000
Болт крепёжный
2Replaced by 01550-0816B-000 Доступно: Нет в наличии
-
2209352-50823-600
Hose (5x8.2x600)
1Replaced by 44420-44AR0-000 Доступно: Нет в наличии
-
2444480-33E00-000
Guide comp,drai
1Replaced by 44480-33E0V-000 Доступно: Нет в наличии
