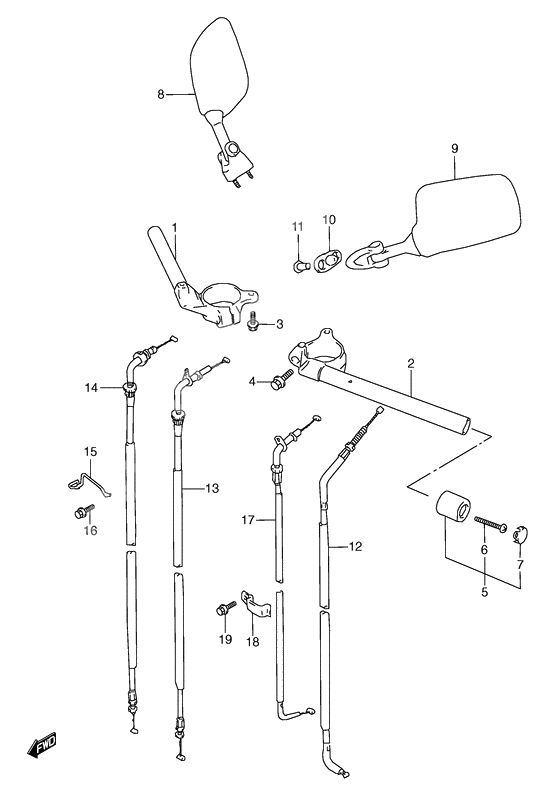

Handlebar
Handlebar
HANDLEBAR,R (Ref #1)
1
Part #56111-33E10-000
HANDLEBAR,L (Ref #2)
2
Part #56151-33E10-000
Bolt (Ref #3)
3
Part #01550-0620A-000
Bolt (Ref #3)
3
Part #01550-0620B-000
Болт,8X30 (Ref #4)
4
Part #09103-08269-000
Balancer set, handlebar (Ref #5)
5
Part #56200-33844-000
Винт катушки зажигания (Ref #6)
6
Part #02142-0640B-000
CAP,BALANCER (Ref #7)
7
Part #56279-33E01-000
MIRROR ASSY,RR VIEW,R (Ref #8)
8
Part #56500-33E00-000
MIRROR ASSY,RR VIEW,L (Ref #9)
9
Part #56600-33E00-000
CUSHION,RR VIEW MIRRORR (Ref #10)
10
Part #94576-22D00-000
Гайка (Ref #11)
11
Part #56619-17C00-000
CABLE ASSY,CLUTCH (Ref #12)
12
Part #58200-33E01-000
Трос (Ref #13)
13
Part #58300-33E00-000
Трос (Ref #14)
14
Part #58300-33E10-000
Guide,throttle (Ref #15)
15
Part #58621-33E0V-000
Bolt (Ref #16)
16
Part #01550-0616A-000
Bolt (Ref #16)
16
Part #01550-0616B-000
Кабель стартера (Ref #17)
17
Part #58410-33E01-000
Clamp (Ref #18)
18
Part #09403-10307-000
Болт (Ref #19)
19
Part #01550-0610A-000
Болт (Ref #19)
19
Part #01550-0610B-000
-
-
-
-
-
-
-
-
-
-
-
-
-
556200-33841-000
Balancer set, handlebar
2Replaced by 56200-33844-000 Доступно: Под заказ
-
-
-
-
-
-
-
602142-06403-000
Винт катушки зажигания
2Replaced by 02142-0640B-000 Доступно: Под заказ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
