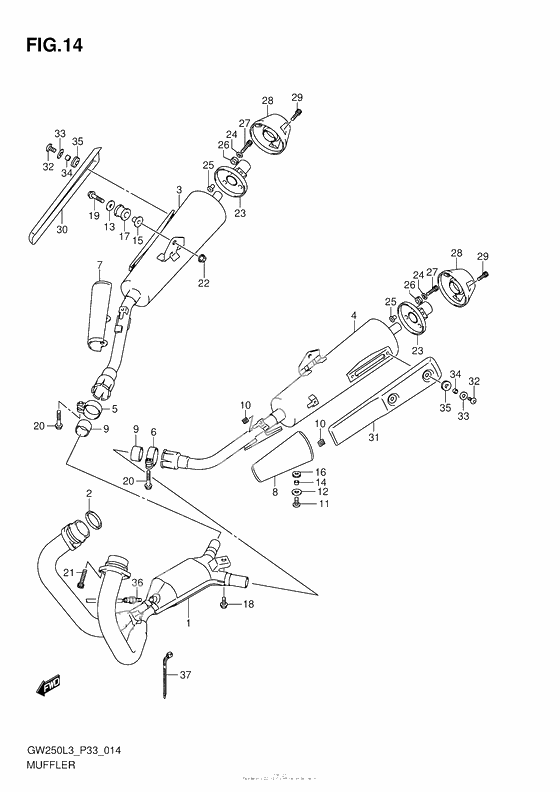

Выхлопная система
Выхлопная система
Выхлоп (Ref #1)
1
Part #14100-48H01-000
GASKET,EXHAUST PIPE (Ref #2)
2
Part #14181-46E20-000
MUFFLER,R (Ref #3)
3
Part #14305-48H02-000
MUFFLER,L (Ref #4)
4
Part #14306-48H03-000
CLAMP,MUFFLER CONNECTOR,R (Ref #5)
5
Part #14459-48H00-000
CLAMP,MUFFLER CONNECTOR,L (Ref #6)
6
Part #14469-48H00-000
COVER,MUFFLER FR,R (Ref #7)
7
Part #14750-48H00-000
COVER,MUFFLER FR,L (Ref #8)
8
Part #14760-48H00-000
CONNECTOR,JOINT (Ref #9)
9
Part #14771-38F10-000
Grommet (Ref #10)
10
Part #14795-10FA0-000
Винт (6X16) (Ref #11)
11
Part #09139-06030-000
WASHER(6.5X18.0X1.0) (Ref #12)
12
Part #09160-06164-000
Шайба (Ref #13)
13
Part #09160-08149-000
SPACER(6.5X9X5) (Ref #14)
14
Part #09180-06365-000
Кольцо/шайба (Ref #15)
15
Part #09180-08L02-000
Cushion (Ref #16)
16
Part #09320-08082-000
Cushion (Ref #17)
17
Part #09320-12L04-000
Болт крепёжный (Ref #18)
18
Part #01550-0816A-000
Bolt (Ref #19)
19
Part #01550-0840A-000
Болт нижней опоры (Ref #21)
21
Part #07130-0830A-000
Гайка вала (Ref #22)
22
Part #08316-1008A-000
STAY,MUFFLER RR COVER (Ref #23)
23
Part #14770-48H01-000
Шайба (Ref #24)
24
Part #09160-06028-000
Кольцо/шайба (Ref #25)
25
Part #09180-06331-000
Cushion (Ref #26)
26
Part #09320-08068-000
Болт (Ref #27)
27
Part #07130-0620A-000
COVER,MUFFLER RR (Ref #28)
28
Part #14790-48H01-YYK
Болт (Ref #29)
29
Part #07130-0616A-000
COVER,MUFFLER BODY,R (Ref #30)
30
Part #14781-48H00-000
COVER,MUFFLER BODY,L (Ref #31)
31
Part #14730-48H00-000
Sensor,oxygen (Ref #36)
36
Part #18213-23H01-000
CLAMP,WIRING HARNESS (Ref #37)
37
Part #36990-32G20-000
