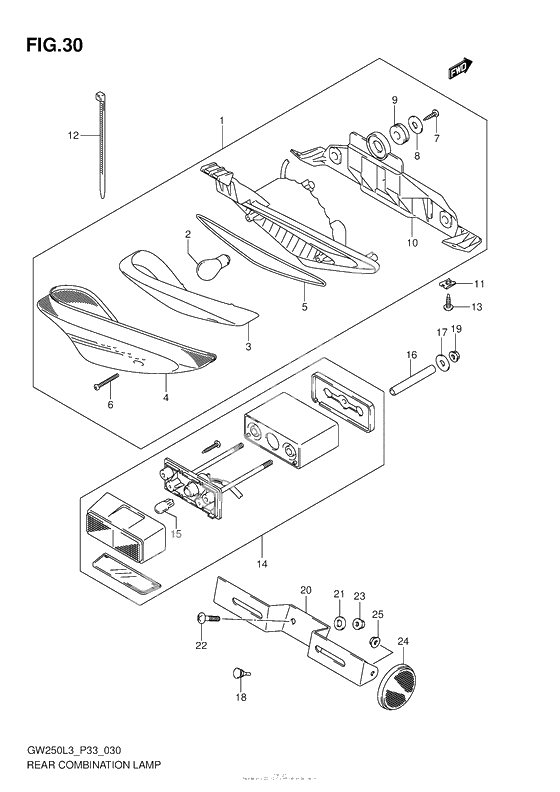

Задний фонарь (Стоп-сигнал)
Задний фонарь (Стоп-сигнал)
LAMP ASSY,RR COMBINATION (Ref #1)
1
Part #35710-48H01-000
BULB(12V21/5W,BF141-49642A) (Ref #2)
2
Part #09471-12128-000
Линза (Ref #3)
3
Part #35732-48H00-000
Линза (Ref #4)
4
Part #35712-48H01-000
Прокладка (Ref #5)
5
Part #35713-48H00-000
Болт (Ref #6)
6
Part #03211-0435A-000
Болт (Ref #7)
7
Part #03241-0514A-000
Шайба (Ref #8)
8
Part #08212-05181-000
Cushion (Ref #9)
9
Part #35765-48H00-000
Bracket (Ref #10)
10
Part #35726-48H00-000
NUT,HEADLAMP (Ref #11)
11
Part #35157-48H00-000
CLAMP(L:50) (Ref #12)
12
Part #36990-48H20-000
Болт (Ref #13)
13
Part #03541-0516A-000
LAMP ASSY,LICENSE (Ref #14)
14
Part #35910-48H01-000
Bulb (12v,5w) (Ref #15)
15
Part #09471-12216-000
SPACER,LICENSE LAMP (Ref #16)
16
Part #35996-48H30-000
Шайба (6.5X20X1.2) (Ref #17)
17
Part #09160-06077-000
CUSHION,LICENSE PLATE (Ref #18)
18
Part #35929-48H00-000
Гайка (Ref #19)
19
Part #08316-1006A-000
BRACKET,LICENSE PLATE (Ref #20)
20
Part #35927-48H30-000
Шайба (Ref #21)
21
Part #09160-06019-000
Болт (Ref #22)
22
Part #02142-0616A-000
REFLECTOR ASSY,RR SIDE (Ref #24)
24
Part #35950-04HA0-000
Гайка (Ref #25)
25
Part #08316-1005A-000
