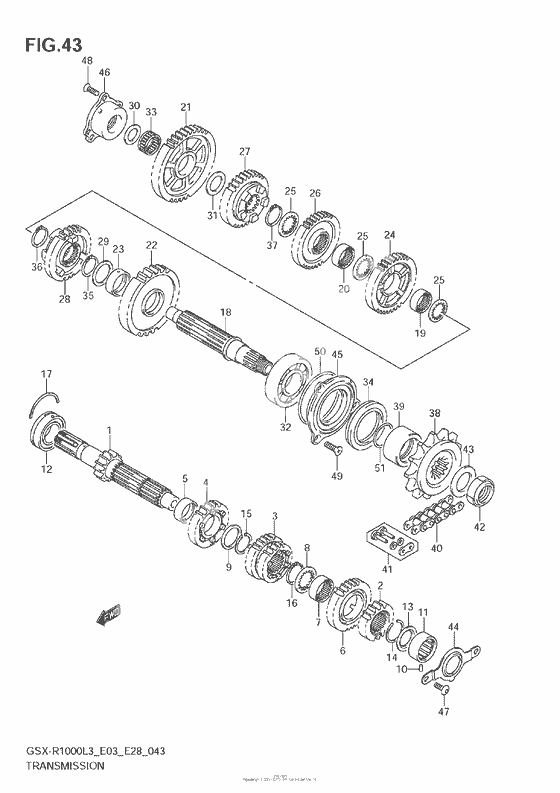

Трансмиссия
Трансмиссия
Shaft,cntr (Ref #1)
1
Part #24120-47H11-000
GEAR,2ND DRIVE (Ref #2)
2
Part #24221-40F30-000
GEAR,3RD & 4TH DRIVE (Ref #3)
3
Part #24231-47H00-000
GEAR,5TH DRIVE (Ref #4)
4
Part #24251-47H00-000
BUSH,5TH DRIVE GEAR (Ref #5)
5
Part #24252-24F10-000
GEAR,6TH DRIVE (Ref #6)
6
Part #24261-47H00-000
BUSH,6TH DRIVE GEAR (Ref #7)
7
Part #24262-24F20-000
Washer,lock (Ref #8)
8
Part #09167-27001-000
Шайба (Ref #9)
9
Part #09160-27008-000
Pin (Ref #10)
10
Part #04221-07129-000
BEARING(20X34X16) (Ref #11)
11
Part #09263-20103-000
BEARING(25X52X20.6) (Ref #12)
12
Part #09267-25013-000
Сальник (Ref #13)
13
Part #09285-20006-000
Circlip (Ref #14)
14
Part #09380-27004-000
Circlip (Ref #15)
15
Part #09380-27006-000
C RING (Ref #17)
17
Part #09390-58001-000
Торсионный вал (Ref #18)
18
Part #24131-47H01-000
BUSH,3RD DRIVEN GEAR (Ref #19)
19
Part #24332-24F20-000
GEAR,1ST DRIVEN (Ref #21)
21
Part #24311-47H00-000
GEAR,2ND DRIVEN (Ref #22)
22
Part #24321-47H00-000
BUSH,2ND DRIVEN GEAR (Ref #23)
23
Part #24322-24F20-000
GEAR,3RD DRIVEN (Ref #24)
24
Part #24331-47H10-000
WASHER,3RD & 4TH DRIVEN GEAR (Ref #25)
25
Part #24333-47H00-000
GEAR,4TH DRIVEN (Ref #26)
26
Part #24341-47H10-000
GEAR,5TH DRIVEN (Ref #27)
27
Part #24351-47H00-000
GEAR,6TH DRIVEN (Ref #28)
28
Part #24361-17K00-000
Шайба - опора (Ref #29)
29
Part #09181-30167-000
SHIM(22X34X1) (Ref #30)
30
Part #09181-22223-000
SHIM(24X34X1) (Ref #31)
31
Part #09181-24005-000
BEARING(30X62X23.8) (Ref #32)
32
Part #09267-30014-000
BEARING(24X28X13) (Ref #33)
33
Part #09263-24030-000
SEAL,OIL(38X56X7) (Ref #34)
34
Part #09283-38027-000
Circlip (Ref #35)
35
Part #09380-30009-000
SPROCKET,ENGINE (Ref #38)
38
Part #27510-15H10-000
SPACER,ENGINE SPROCKET (Ref #39)
39
Part #27531-47H00-000
CHAIN,DRIVE(DID50VAZ) (Ref #40)
40
Part #27600-40F20-114
JOINT SET,DRIVE CHAIN(DID) (Ref #41)
41
Part #27620-40F20-000
Nut (Ref #42)
42
Part #09159-22008-000
SHIM(27X42X1.5) (Ref #43)
43
Part #09181-27016-000
RETAINER,CL PUSH ROD OIL SEAL (Ref #44)
44
Part #24741-01H00-000
RETAINER,DRIVE SHAFT BEARING,L (Ref #45)
45
Part #24751-47H00-000
HOUSING,DRIVE SHAFT SET (Ref #46)
46
Part #24771-01820-000
SCREW(6X13) (Ref #47)
47
Part #09139-06153-000
SCREW(6X20) (Ref #48)
48
Part #09139-06159-000
O RING(D:1.9,ID:61.5) (Ref #50)
50
Part #09280-62004-000
Кольцо уплотнительное (Ref #51)
51
Part #09280-26005-000
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ШАЙБА ТРАНСМИССИИ, МЕТАЛЛ, / NUT TRANSMISSION SHAFT, 0915922008, 09159-22008, 09159 22008, SUZUKI
Цена: 2 850.00 р.
Доступно: 1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
