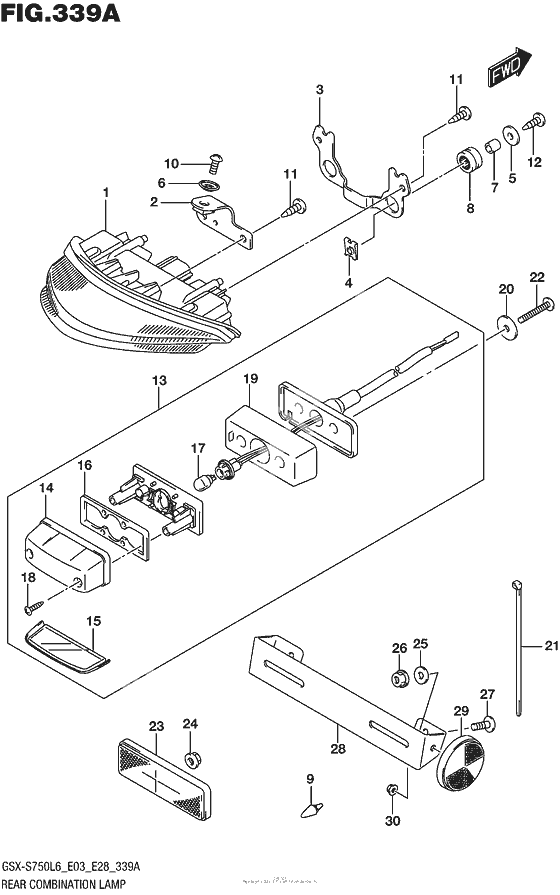

Задний фонарь (Стоп-сигнал)
Задний фонарь (Стоп-сигнал)
LAMP ASSY,RR COMBINATION (Ref #1)
1
Part #35710-21H30-000
BRACKET,RR COMBINATION LAMP (Ref #2)
2
Part #35726-08J00-000
BRACKET,RR COMBINATION LAMP (Ref #3)
3
Part #35726-08J10-000
Гайка (Ref #4)
4
Part #09148-05047-000
Шайба (5.5X20X1.2) (Ref #5)
5
Part #09160-05501-000
Шайба (Ref #6)
6
Part #09169-06071-000
Кольцо/шайба (Ref #7)
7
Part #09180-06285-000
Cushion (Ref #8)
8
Part #09320-09009-000
Cushion (Ref #9)
9
Part #09321-06028-000
Болт (Ref #10)
10
Part #02142-0612A-000
Болт (Ref #11)
11
Part #03541-0516A-000
Болт (Ref #12)
12
Part #03541-0520B-000
Lamp assy, license (Ref #13)
13
Part #35910-16G31-000
Cover (Ref #14)
14
Part #35917-16G00-000
Линза (Ref #15)
15
Part #35912-16G01-000
Прокладка (Ref #16)
16
Part #35913-16G00-000
Bulb (12v,5w) (Ref #17)
17
Part #09471-12216-000
Болт (Ref #18)
18
Part #03211-0416A-000
Кольцо/шайба (Ref #19)
19
Part #35978-16G30-000
Clamp (l:145) (Ref #21)
21
Part #09407-14407-000
Screw (Ref #22)
22
Part #03541-0540A-000
Reflector assy, rear side (Ref #23)
23
Part #35970-07F01-000
Гайка (Ref #24)
24
Part #08316-1005A-000
Шайба (6.5X20X1.2) (Ref #25)
25
Part #09160-06077-000
Гайка (Ref #26)
26
Part #08316-1006A-000
Болт (Ref #27)
27
Part #02142-0616A-000
BRACKET,LICENSE PLATE (Ref #28)
28
Part #35927-08J30-000
REFLECTOR ASSY. REAR SIDE (Ref #29)
29
Part #35970-14A20-000
