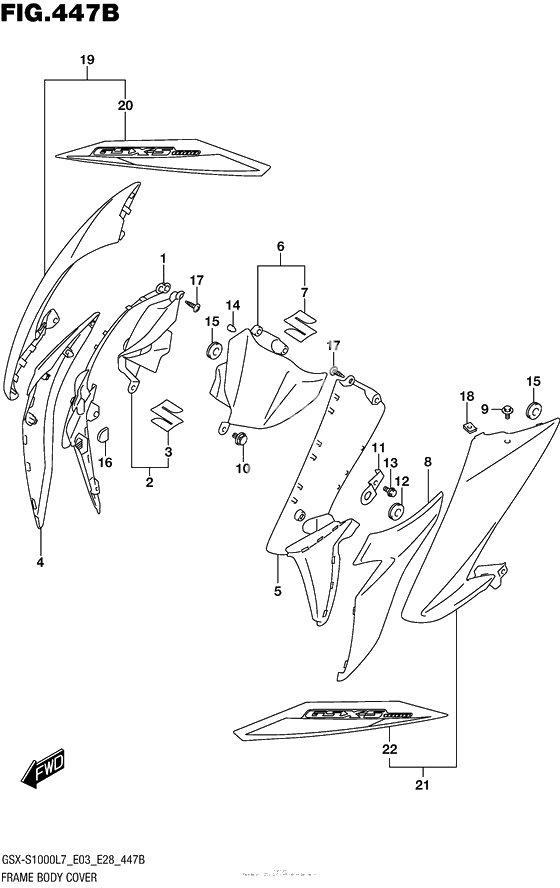

Нижняя накладка радиатора (Ysf)
Нижняя накладка радиатора (Ysf)
COVER,FRAME BODY INNER,R (Ref #1)
1
Part #47531-04K00-000
COVER ASSY,INTAKE,R (Ref #2)
2
Part #47570-04K00-000
ЭМБЛЕМА МАРКИ (Ref #3)
3
Part #68111-47HA0-000
COVER,FRAME BODY LOWER,R (Ref #4)
4
Part #47533-04K00-YSF
COVER,FRAME BODY INNER,L (Ref #5)
5
Part #47541-04K00-000
COVER ASSY,INTAKE,L (Ref #6)
6
Part #47580-04K00-000
COVER,FRAME BODY LOWER,L (Ref #8)
8
Part #47543-04K00-YSF
Болт (Ref #9)
9
Part #09139-05064-000
КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК (Ref #10)
10
Part #94479-35F00-000
BRACKET,FRAME BODY COVER (Ref #11)
11
Part #47539-04K00-000
Валик (Ref #12)
12
Part #09320-08018-000
Bolt (Ref #13)
13
Part #01547-0612B-000
Валик капота (Ref #14)
14
Part #09321-06036-000
САЙЛЕНТБЛОК (Ref #15)
15
Part #09320-06504-000
упругая прокладка подвеса (Ref #16)
16
Part #09329-18001-000
Болт (Ref #17)
17
Part #03541-0516A-000
Гайка (Ref #18)
18
Part #09148-05052-000
COVER,FRAME BODY,R(BLUE) (Ref #19)
19
Part #47510-04K10-YSF
TAPE,FRAME BODY COVER,R (Ref #20)
20
Part #68135-04K00-A78
COVER,FRAME BODY,L(BLUE) (Ref #21)
21
Part #47520-04K10-YSF
TAPE,FRAME BODY COVER,L (Ref #22)
22
Part #68145-04K00-A78
