Equipo electrico
Equipo electrico

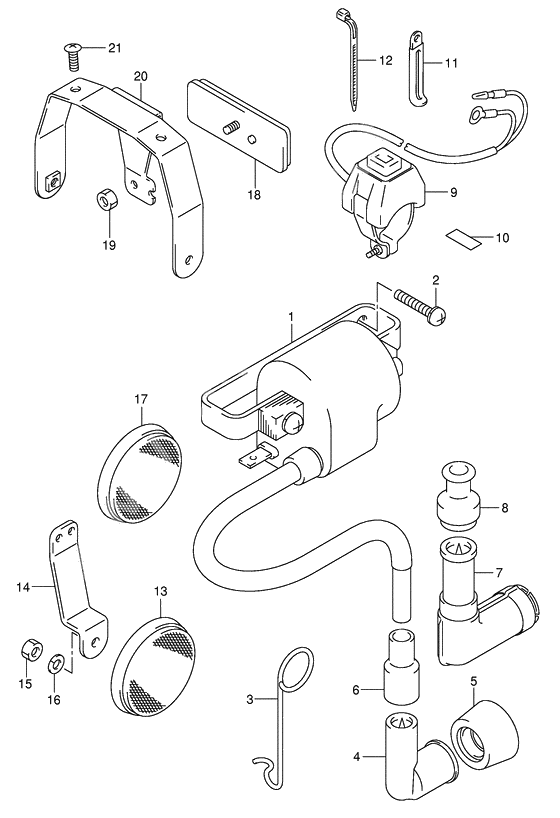

UNIT & COIL ASSY,IGNITION (Ref #1)
1
Part #33410-35340-000
Screw (6x20) (Ref #2)
2
Part #02112-06207-000
Clip (Ref #3)
3
Part #58626-04410-000
Свечной колпачек (Ref #4)
4
Part #33510-35411-000
Уплотнение свечи зажигания (Ref #5)
5
Part #33541-69010-000
Уплотнение (Ref #6)
6
Part #33542-38B00-000
Колпак заглушки (Ref #7)
7
Part #33510-19G00-000
SWITCH ASSY,ENGINE STOP (Ref #9)
9
Part #37820-14X50-000
Label, engine stop (Ref #10)
10
Part #37238-46401-000
Label, engine s (Ref #10)
10
Part #37238-46411-000
Струбцина катушки (Ref #11)
11
Part #09404-06429-000
Струбцина (L:165) (Ref #12)
12
Part #09407-18402-000
REFLECTOR,REFLEX FR (Ref #13)
13
Part #35950-14A00-000
BRACKET,FR SIDE RR (Ref #14)
14
Part #35975-09AA0-000
Гайка (Ref #15)
15
Part #08310-0005A-000
Пластина замка (Ref #16)
16
Part #08321-0105A-000
Пластина замка (Ref #16)
16
Part #08321-0105B-000
REFLEX REFLECTOR,RR (Ref #17)
17
Part #35970-14A10-000
Reflector assy, rear side (Ref #18)
18
Part #35970-07F01-000
BRACKET,SIDE & RR (Ref #20)
20
Part #35976-04450-000
Винт 6X12 (Ref #21)
21
Part #02142-06127-000
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1835970-07F00-000
Reflector assy, rear side
1Replaced by 35970-07F01-000 Доступно: Под заказ
-
-
-
-
-
-
-
-
