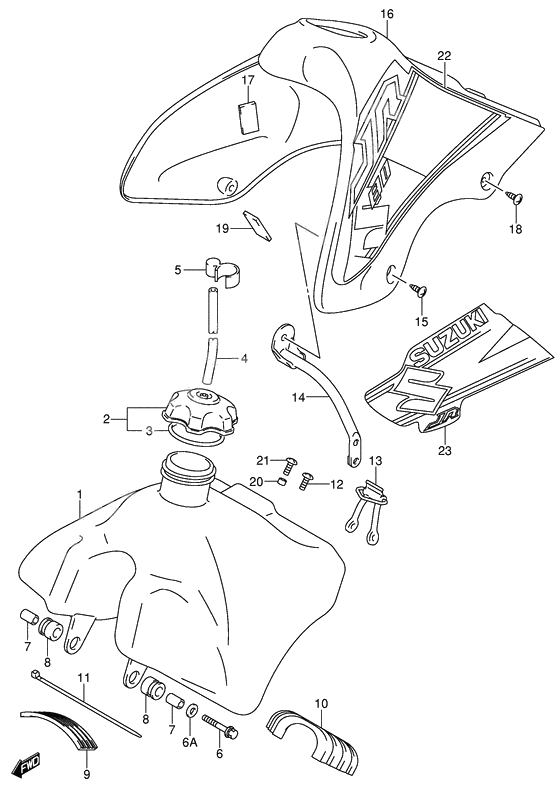

Tank fuel Model k1/k2
Tank fuel Model k1/k2
Tank,fuel (Ref #1)
1
Part #44110-034A0-000
CAP SET,FUEL TANK (Ref #2)
2
Part #44200-27870-000
Прокладка (Ref #3)
3
Part #44248-27C00-000
Шланг топливный (Ref #4)
4
Part #44420-44AR0-000
Струбцина шланга (Ref #5)
5
Part #44486-03400-000
WASHER(6.5X18X1) (Ref #6A)
6A
Part #09160-06056-000
Bolt, front (Ref #6)
6
Part #01570-0635B-000
Spacer (Ref #7)
7
Part #09180-06295-000
Spacer (Ref #7)
7
Part #09180-06295-000
Spacer (Ref #7)
7
Part #09180-06295-000
Spacer (Ref #7)
7
Part #09180-06295-000
Cushion (Ref #8)
8
Part #09320-10044-000
Cushion (Ref #8)
8
Part #09320-10044-000
Cushion (Ref #8)
8
Part #09320-10044-000
Cushion (Ref #8)
8
Part #09320-10044-000
CUSHION,FUEL TANK UPR FR (Ref #9)
9
Part #44541-14300-000
CUSHION,FUEL TANK UPR RR (Ref #10)
10
Part #44542-03400-000
Clamp (Ref #11)
11
Part #09407-25402-000
Болт (Ref #12)
12
Part #02142-0616A-000
BAND,FUEL TANK RR (Ref #13)
13
Part #44560-034A0-000
BRACKET,FUEL TANK COVER (Ref #14)
14
Part #44170-034A0-000
SCREW(6X16) (Ref #15)
15
Part #09139-06083-000
Cover,fuel tank (Ref #16)
16
Part #44271-034A0-YU1
CUSHION,FR FENDER (Ref #17)
17
Part #53145-48B00-000
Болт (Ref #18)
18
Part #03241-1516A-000
CUSHION,OIL TANK UPR (Ref #19)
19
Part #44831-17B00-000
Кольцо/шайба (Ref #20)
20
Part #09180-06246-000
Болт верхний (Ref #21)
21
Part #09111-06107-000
Bolt(6x16) (Ref #21)
21
Part #09111-06066-000
Tape set, tank cover (Ref #22)
22
Part #68120-034A0-DY9
TAPE SET,FUEL TANK COVER (Ref #23)
23
Part #68120-034B0-GY7
-
409352-50823-600
Hose (5x8.2x600)
1Replaced by 44420-44AR0-000 Доступно: Нет в наличии
-
1644271-034A0-YR1
Cover, fuel tank (yellow)
1Replaced by 44271-034A0-YU1 Доступно: Нет в наличии
