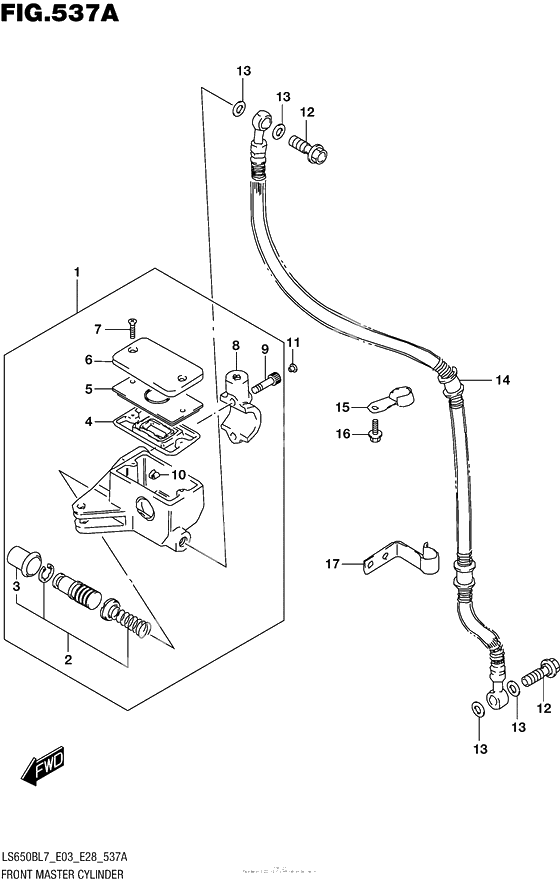

Передний тормозной цилиндр
Передний тормозной цилиндр
Cylinder assy,front master (Ref #1)
1
Part #59600-38AB0-000
PISTON/CUP SET (Ref #2)
2
Part #59600-04810-000
Ботинок (Ref #3)
3
Part #59666-44300-000
Diaphragm (Ref #4)
4
Part #59667-49460-000
PLATE,DIAPHRAGM (Ref #5)
5
Part #59668-41C00-000
Cap (Ref #6)
6
Part #59669-41C00-000
Болт (Ref #7)
7
Part #69689-49300-000
Holder (Ref #8)
8
Part #59671-05A00-000
Bolt (Ref #9)
9
Part #07130-0620B-000
Protector (Ref #10)
10
Part #59664-48B00-000
Cap (Ref #11)
11
Part #09250-05009-000
Bolt (Ref #12)
12
Part #09360-10061-000
Шайба (Ref #13)
13
Part #09161-10009-000
Hose comp,front brake (Ref #14)
14
Part #59480-24B70-000
GUIDE,BRAKE HOSE NO.1 (Ref #15)
15
Part #59541-24B10-000
Болт (Ref #16)
16
Part #01547-0610A-000
GUIDE,BRAKE HOSE NO.2 (Ref #17)
17
Part #59268-24B10-000
