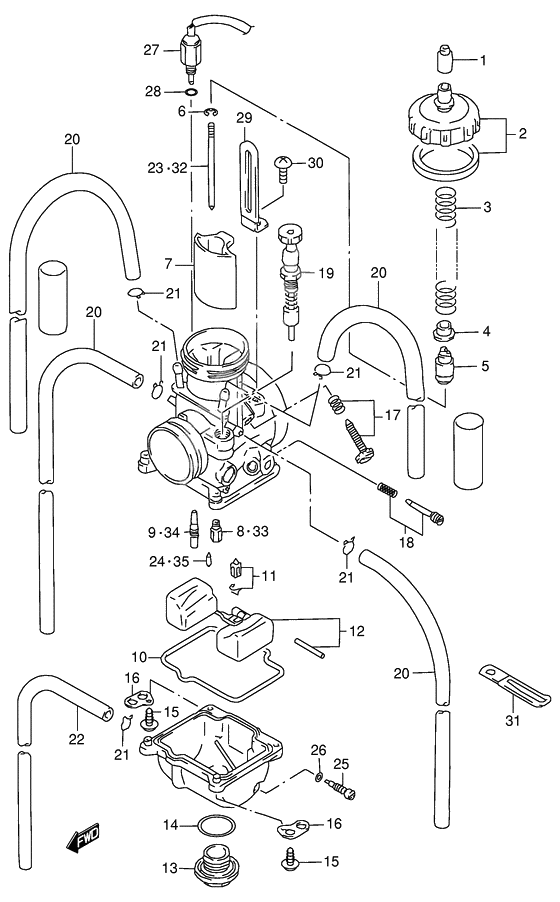

Carburetor assy Model x/y
Carburetor assy Model x/y
CAP,CARBURETOR (Ref #1)
1
Part #13681-43D30-000
CAP SET,TOP (Ref #2)
2
Part #13260-43D30-000
SPRING,THROTTLE VALVE (Ref #3)
3
Part #13573-43D30-000
COLLAR,THROTTLE VALVE (Ref #4)
4
Part #13424-43D30-000
Держатель кабеля (Ref #5)
5
Part #13581-43D30-000
CLIP,NEEDLE (Ref #6)
6
Part #13394-28E00-000
Клапан дросселя (Ref #7)
7
Part #13551-36E00-000
Жиклер главный (175) (Ref #8)
8
Part #09491-35009-000
Жиклер главный (180) (Ref #8)
8
Part #09491-36008-000
JET,SLOW(50) (Ref #9)
9
Part #09492-50023-000
JET,SLOW(55) (Ref #9)
9
Part #09492-55017-000
Прокладка муфты (Ref #10)
10
Part #13696-44E00-000
VALVE SET,FLOAT (Ref #11)
11
Part #13370-43D30-000
FLOAT SET (Ref #12)
12
Part #13240-28E00-000
Болт сквозной (Ref #13)
13
Part #13247-28E00-000
O ring (Ref #14)
14
Part #13246-28E00-000
Болт (Ref #15)
15
Part #02112-3416B-000
Болт (Ref #15)
15
Part #02112-3416B-000
Болт (Ref #15)
15
Part #02112-3416B-000
Болт (Ref #15)
15
Part #02112-3416B-000
Plate (Ref #16)
16
Part #13693-36E00-000
Plate (Ref #16)
16
Part #13693-36E00-000
Plate (Ref #16)
16
Part #13693-36E00-000
Plate (Ref #16)
16
Part #13693-36E00-000
SCREW SET,STOP (Ref #17)
17
Part #13270-43D30-000
SCREW SET,AIR (Ref #18)
18
Part #13280-43D30-000
Втулка (Ref #19)
19
Part #13410-43D30-000
Втулка (Ref #19)
19
Part #13410-36E40-000
HOSE(3.5X6.5X600) (Ref #22)
22
Part #09351-35653-600
NEEDLE(R1469LS) (Ref #23)
23
Part #13383-36E20-000
BLEEDER (Ref #23)
23
Part #13383-28E00-000
JET,POWER(55) (Ref #24)
24
Part #09492-55019-000
Винт дренажный (Ref #25)
25
Part #13247-44E00-000
O ring (Ref #26)
26
Part #13256-44E00-000
Solenoid assy (Ref #27)
27
Part #13160-37E01-000
O ring (Ref #28)
28
Part #13453-37E00-000
Clamp (Ref #29)
29
Part #13451-37E00-000
Болт (Ref #30)
30
Part #13452-37E00-000
Clamp (Ref #31)
31
Part #09404-08206-000
Clamp (l:80) (Ref #31)
31
Part #09404-06432-000
Needle,r1467ms (Ref #32)
32
Part #13383-43D60-000
Жиклер (Ref #32)
32
Part #13383-43D50-000
NEEDLE(R1468MS) (Ref #32)
32
Part #13383-43D40-000
Needle,r1468ns (Ref #32)
32
Part #13383-43D30-000
Needle,jet,r147 (Ref #32)
32
Part #13383-36E80-000
Жиклер (Ref #32)
32
Part #13383-37E10-000
NEEDLE,JET(R1469KS) (Ref #32)
32
Part #13383-36E70-000
Жиклер (Ref #32)
32
Part #13383-37E00-000
Needle,jet,r146 (Ref #32)
32
Part #13383-36E60-000
Жиклер (Ref #32)
32
Part #13383-28E50-000
NEEDLE,JET(R1471KS) (Ref #32)
32
Part #13383-36E90-000
BLEEDER (Ref #32)
32
Part #13383-28E20-000
NEEDLE,JET(R1470LS) (Ref #32)
32
Part #13383-36E30-000
BLEEDER (Ref #32)
32
Part #13383-28E40-000
NEEDLE,JET(R1467KS) (Ref #32)
32
Part #13383-36E50-000
BLEEDER (Ref #32)
32
Part #13383-28E30-000
NEEDLE,JET(R1471LS) (Ref #32)
32
Part #13383-36E40-000
BLEEDER (Ref #32)
32
Part #13383-28E10-000
Needle,jet,r146 (Ref #32)
32
Part #13383-36E10-000
Needle,jet,r146 (Ref #32)
32
Part #13383-36E00-000
JET,MAIN(152) (Ref #33)
33
Part #09491-30019-000
JET,MAIN(148) (Ref #33)
33
Part #09491-29015-000
JET,MAIN(145) (Ref #33)
33
Part #09491-29014-000
Жиклер главный (150) (Ref #33)
33
Part #09491-30018-000
Жиклер главный (Ref #33)
33
Part #09491-40013-000
JET,MAIN(195) (Ref #33)
33
Part #09491-39001-000
Жиклер главный 170 (Ref #33)
33
Part #09491-34010-000
Жиклер главный (190) (Ref #33)
33
Part #09491-38011-000
Жиклер главный (185) (Ref #33)
33
Part #09491-37008-000
JET,MAIN(178) (Ref #33)
33
Part #09491-35010-000
JET,MAIN(172) (Ref #33)
33
Part #09491-34011-000
Жиклер главный (160) (Ref #33)
33
Part #09491-32010-000
Жиклер главный (165) (Ref #33)
33
Part #09491-33009-000
JET,MAIN(168) (Ref #33)
33
Part #09491-33010-000
JET,MAIN(162) (Ref #33)
33
Part #09491-32011-000
JET,MAIN(158) (Ref #33)
33
Part #09491-31013-000
Жиклер главный (155) (Ref #33)
33
Part #09491-31012-000
JET,SLOW(60) (Ref #34)
34
Part #09492-60016-000
Жиклер (Ref #34)
34
Part #09492-52011-000
JET,PILOT(45) (Ref #34)
34
Part #09492-45032-000
Жиклер пропускной (35) (Ref #34)
34
Part #09492-35019-000
Жиклер (40) (Ref #34)
34
Part #09492-40022-000
Жиклерпроводник (Ref #34)
34
Part #09492-58001-000
JET,SLOW(70) (Ref #34)
34
Part #09492-70009-000
JET,SLOW(65) (Ref #34)
34
Part #09492-65008-000
JET,POWER(60) (Ref #35)
35
Part #09492-60018-000
JET,POWER(50) (Ref #35)
35
Part #09492-50025-000
-
2713160-37E00-000
Solenoid assy
1Replaced by 13160-37E01-000 Доступно: Нет в наличии
