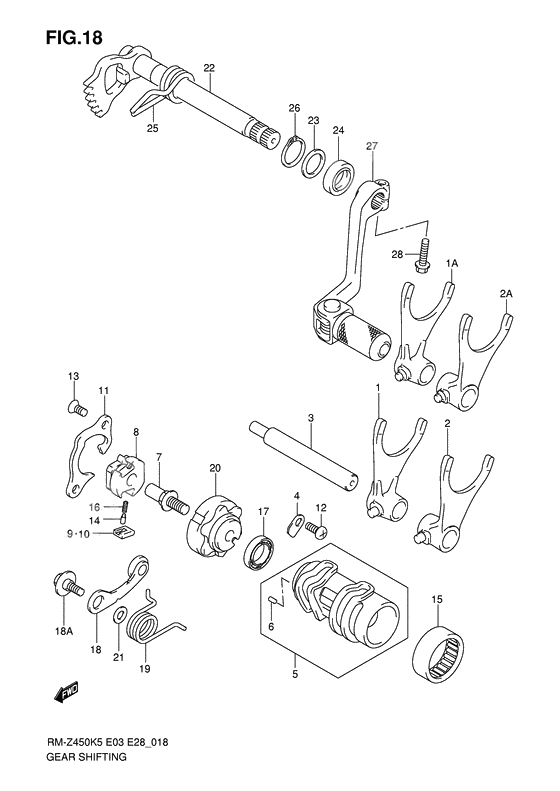

Gear shifting
Gear shifting
FORK,GEAR SHIFT NO.1 (Ref #1)
1
Part #25211-35G00-000
FORK,GEAR SHIFT NO.1 (Ref #1A)
1A
Part #25211-35G10-000
Fork, gear shift no.2 (Ref #2A)
2A
Part #25221-35G00-000
SHAFT,GEAR SHIFT FORK NO.1 (Ref #3)
3
Part #25411-35G00-000
Retainer (Ref #4)
4
Part #24741-21A00-000
Кулак (Ref #5)
5
Part #25310-35G00-000
шпонка ведомой звездочки балансира (Ref #6)
6
Part #04221-04089-000
PIN,SHIFT CAM DRIVEN GEAR (Ref #7)
7
Part #25313-27C02-000
GEAR,GEAR SHIFT CAM DRIVEN (Ref #8)
8
Part #25322-37F01-000
PAWL,GEAR SHIFT NO.1 (Ref #9)
9
Part #25323-34201-000
PAWL,GEAR SHIFT NO.2 (Ref #10)
10
Part #25324-34201-000
LIFTER,GEAR SHIFT PAWL (Ref #11)
11
Part #25331-35G00-000
Bolt(6x12) (Ref #12)
12
Part #09125-06110-000
SCREW,6X12 (Ref #13)
13
Part #09126-06011-000
Штифт (Ref #14)
14
Part #09209-05023-000
BEARING(33X38X8) (Ref #15)
15
Part #09263-33004-000
Spring (Ref #16)
16
Part #09440-04003-000
Bearing (Ref #17)
17
Part #08140-68050-000
STOPPER,GEAR SHIFT CAM (Ref #18)
18
Part #25350-35G00-000
BOLT(6X14.3) (Ref #18A)
18A
Part #09111-06041-000
SPRING,GEAR SHIFT CAM STOPPER (Ref #19)
19
Part #25355-35G00-000
SPRING,GEAR SHIFT CAM (Ref #19)
19
Part #25355-35G10-000
PLATE,SHIFT CAM STOPPER (Ref #20)
20
Part #25381-37F30-000
Шайба упорная (Ref #21)
21
Part #08211-06121-000
SHAFT,GEAR SHIFT (Ref #22)
22
Part #25510-35G00-000
Шайба (Ref #23)
23
Part #09181-14139-000
САЛЬНИК МЕХАНИЗМА ВЫБОРА КПП (Ref #24)
24
Part #09283-14006-000
Spring (Ref #25)
25
Part #09444-20008-000
Circlip (Ref #26)
26
Part #08331-3114A-000
LEVER ASSY,GEAR SHIFT (Ref #27)
27
Part #25600-35G00-000
Bolt (Ref #28)
28
Part #01547-06207-000
-
-
-
-
-
-
-
2A25221-35G10-000
Fork, gear shift no.2
1Replaced by 25221-35G00-000 Доступно: Под заказ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
