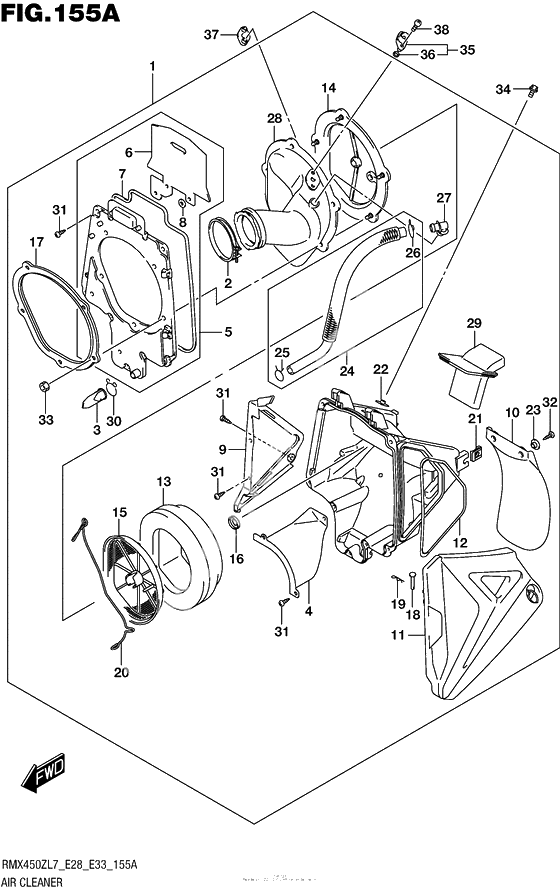

Воздушный фильтр
Воздушный фильтр
CLEANER ASSY,AIR (Ref #1)
1
Part #13700-02J02-019
Clamp (Ref #2)
2
Part #13170-25D01-000
Трубка, дренажная (Ref #3)
3
Part #13681-19B01-000
Plate,heat guard (Ref #4)
4
Part #13719-02J00-000
CASE,AIR CLEANER FR (Ref #5)
5
Part #13721-02J00-000
COVER,AIR CLEANER (Ref #6)
6
Part #13749-02J00-000
Прокладка корпуса (Ref #7)
7
Part #13756-02J00-000
NUT,PUSH (Ref #8)
8
Part #13832-02J00-000
Cover,side,r (Ref #9)
9
Part #13723-02J00-000
Струбцина (Ref #10)
10
Part #13738-36E01-000
CAP,AIR CLEANER(YELLOW) (Ref #11)
11
Part #13740-02J01-YU1
Прокладка корпуса (Ref #12)
12
Part #13757-02J00-000
Filter assy (Ref #13)
13
Part #13780-02J00-000
BASE,FILTER (Ref #14)
14
Part #13790-02J00-000
HOLDER,FILTER (Ref #15)
15
Part #13791-02J00-000
Кольцо/шайба (Ref #16)
16
Part #13796-44E00-000
Пластина фильтра (Ref #17)
17
Part #13797-02J00-000
PIN,HINGE (Ref #18)
18
Part #13822-02J00-000
Штифт (Ref #19)
19
Part #13823-02J00-000
Пружина (Ref #20)
20
Part #13825-02J00-000
Receptacle (Ref #21)
21
Part #13835-02J01-000
NUT,AIR CLEANER (Ref #22)
22
Part #13836-12D00-000
Collar (Ref #23)
23
Part #13838-02B00-000
TUBE,BREATHER (Ref #24)
24
Part #13850-02J00-000
Clip (Ref #25)
25
Part #09401-13301-000
ХОМУТ МАЛЫЙ (Ref #26)
26
Part #09401-14101-000
Соединение (Ref #27)
27
Part #13858-14D20-000
TUBE,OUTLET (Ref #28)
28
Part #13881-02J00-000
Трубка впуска (Ref #29)
29
Part #13891-02J01-000
Clip (Ref #30)
30
Part #09401-17201-000
Болт (Ref #31)
31
Part #03211-0516B-000
Болт (Ref #32)
32
Part #03541-0520B-000
Гайка (Ref #33)
33
Part #08310-00057-000
Болт (Ref #34)
34
Part #01547-0612A-000
Сенсор температуры воздуха (Ref #35)
35
Part #13650-14G10-000
O ring (Ref #36)
36
Part #13655-14G10-000
BRACKET,AIR TEMP SENSOR (Ref #37)
37
Part #13652-28H00-000
Болт (Ref #38)
38
Part #02112-0516A-000
-
313681-19B00-000
Трубка, дренажная
1Replaced by 13681-19B01-000 Доступно: Нет в наличии
-
2913891-02J00-000
Трубка впуска
1Replaced by 13891-02J01-000 Доступно: Нет в наличии
