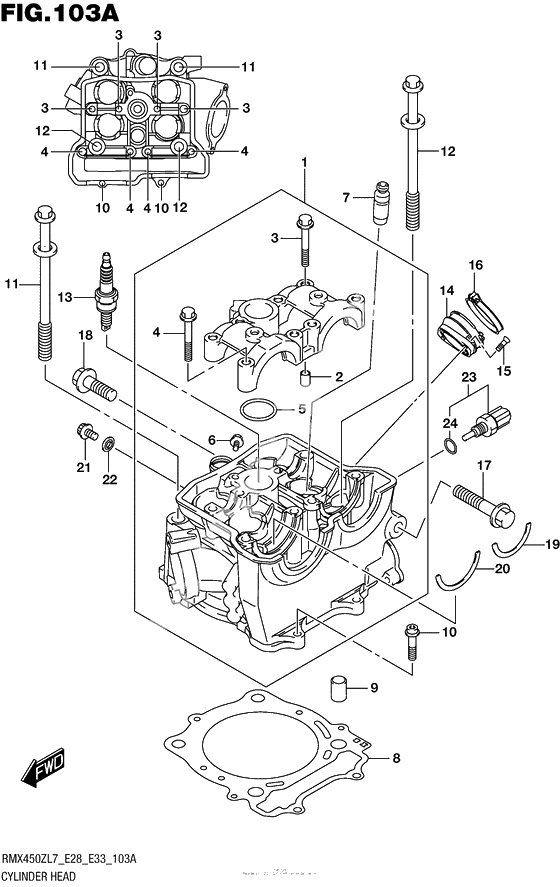

Головка цилиндра
Головка цилиндра
Head assy,cylinder (Ref #1)
1
Part #11100-02J00-000
Стопор (Ref #2)
2
Part #09206-08001-000
BOLT(6X40) (Ref #3)
3
Part #09103-06266-000
Bolt(6x45) (Ref #4)
4
Part #09103-06293-000
O RING(D:2.4,ID:25.7) (Ref #5)
5
Part #09280-26007-000
Болт 6X10 (Ref #6)
6
Part #09103-06188-000
Направляющая клапана (Ref #7)
7
Part #11115-45G70-000
Прокладка головки цилиндров (Ref #8)
8
Part #11141-28H00-000
Pin (Ref #9)
9
Part #04211-13189-000
Винт (Ref #10)
10
Part #07120-0625A-000
BOLT,CYLINDER HEAD(L:140) (Ref #11)
11
Part #11117-28H00-000
Болт головки цилиндра (Ref #12)
12
Part #11161-45G00-000
PLUG,SPARK(CR8EIB-10) (Ref #13)
13
Part #09482-00584-000
PIPE ASSY,INTAKE (Ref #14)
14
Part #13101-02J00-000
Болт (Ref #15)
15
Part #02122-0616A-000
Clamp, intake pipe (Ref #16)
16
Part #13170-35G01-000
Болт нижний (Ref #17)
17
Part #09103-10116-000
BOLT(10X30) (Ref #18)
18
Part #09103-10359-000
Кольцо стопорное (Ref #19)
19
Part #12749-35G01-000
Кольцо стопорное (Ref #20)
20
Part #12749-10H00-000
Болт (Ref #21)
21
Part #07120-0610A-000
Gasket (5.8x13x1.2) (Ref #22)
22
Part #09168-06023-000
SENSOR,WATER TEMP (Ref #23)
23
Part #13650-14G00-000
O ring (Ref #24)
24
Part #13655-14G00-000
