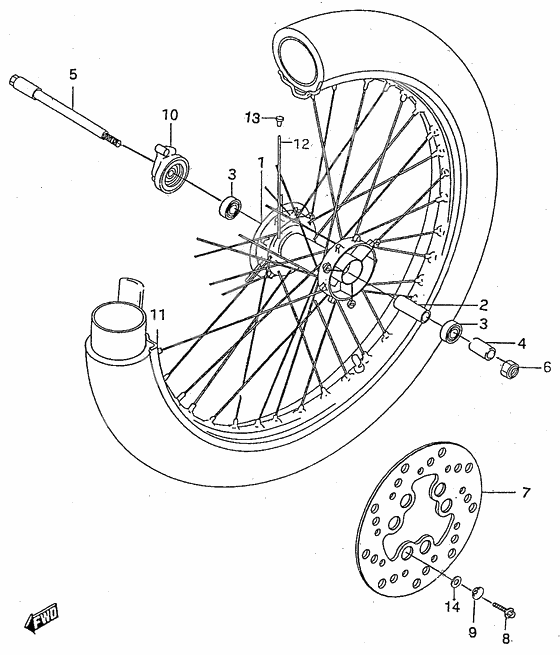

Transom + tube
Transom + tube
Hub, front wheel (Ref #1)
1
Part #54100-03E20-000
Spacer, front hub (Ref #2)
2
Part #54731-03E20-000
Bearing (Ref #3)
3
Part #D8130-62010-000
Bearing (Ref #3)
3
Part #D8130-62010-000
Bearing (Ref #3)
3
Part #D8130-62010-000
Bearing (Ref #3)
3
Part #D8130-62010-000
Spacer (25x12.2x8.25) (Ref #4)
4
Part #09180-12E16-E0N
Axle, front (Ref #5)
5
Part #54700-03E00-E0Z
Гайка (Ref #6)
6
Part #D8319-60128-000
Disc, front brake (Ref #7)
7
Part #59211-03E10-000
Bolt (Ref #8)
8
Part #59212-03E00-000
Bucket, rear brake disc (Ref #9)
9
Part #59219-03E10-000
Box assy, speedometer (Ref #10)
10
Part #54600-03E10-000
Rim, front wheel (2.50"x17") (Ref #11)
11
Part #55311-03E10-000
Набор спиц внутренних (Ref #12)
12
Part #64321-03E10-000
Ниппель (Ref #13)
13
Part #64322-00E00-000
Шайба (Ref #14)
14
Part #59220-03E00-000
