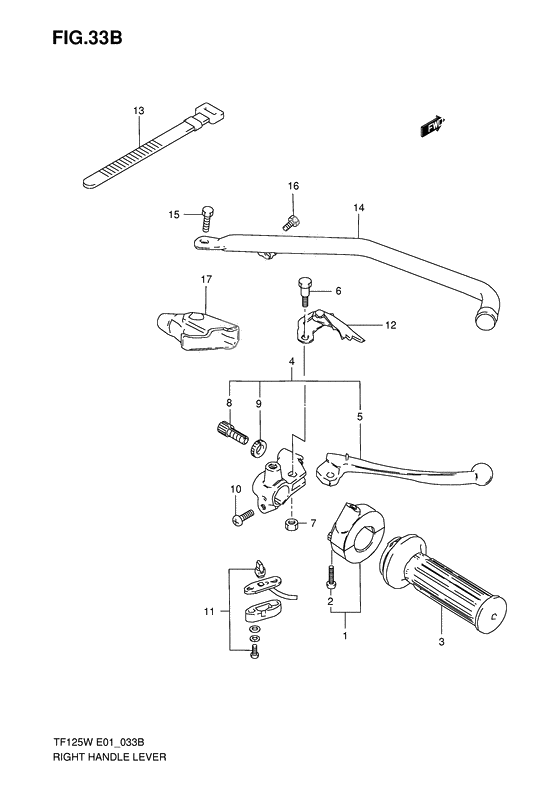

Right handle lever Model k5
Right handle lever Model k5
CASE ASSY,THROTTLE (Ref #1)
1
Part #57100-37400-000
Болт (Ref #2)
2
Part #02112-05207-000
Зажим дросселя (Ref #3)
3
Part #57110-37200-000
Brake lever & switch assy (Ref #4)
4
Part #57300-29520-000
Рукоятка (Ref #5)
5
Part #57420-29501-000
BOLT,LEVER PIVOT (Ref #6)
6
Part #57431-29502-000
Гайка (Ref #7)
7
Part #08319-2106A-000
Кабель регулирующий (Ref #8)
8
Part #57441-26010-000
NUT,CABLE ADJUSTER (Ref #9)
9
Part #57442-11010-000
Screw (6x20) (Ref #10)
10
Part #02112-06207-000
Переключатель (Ref #11)
11
Part #57460-33700-000
STOPPER,BRAKE LEVER (Ref #12)
12
Part #57780-29501-000
Струбцина (Ref #13)
13
Part #09407-12402-000
PROTECTOR,FR BRAKE LEVER (Ref #14)
14
Part #56350-29510-000
Bolt (Ref #15)
15
Part #01580-0612A-000
Bolt (Ref #15)
15
Part #01580-0612B-000
Болт (Ref #16)
16
Part #01580-0816A-000
Cover, brake lever (Ref #17)
17
Part #57341-29520-000
