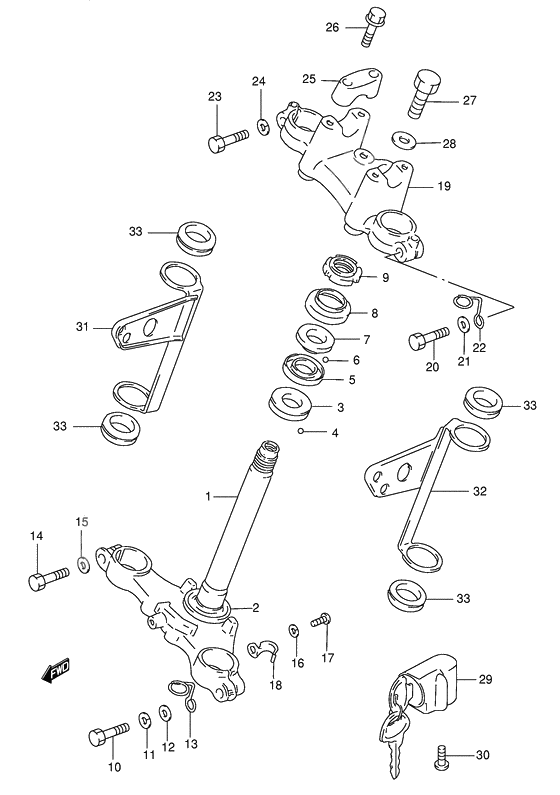

Steering stem P9
Steering stem P9
STEM,STEERING (Ref #1)
1
Part #51410-29930-08C
RACE,STEERING OUTER LWR (Ref #2)
2
Part #51621-33001-000
RACE,STEERING INNER LWR (Ref #3)
3
Part #51611-33002-000
Шарик стальной (Ref #4)
4
Part #06111-08003-000
RACE,STEERING INNER UPR (Ref #5)
5
Part #51611-20002-000
Шарик стальной (Ref #6)
6
Part #06111-06003-000
RACE,STEERING OUTER UPR (Ref #7)
7
Part #51621-28000-000
DUST SEAL,STEERING UPR (Ref #8)
8
Part #51643-25001-000
NUT,STEERING STEM(25X44X10) (Ref #9)
9
Part #51631-28000-000
Bolt (Ref #10)
10
Part #01500-12457-000
Пластина замка (Ref #11)
11
Part #08321-01127-000
Шайба (Ref #12)
12
Part #08322-01127-000
Clip (Ref #13)
13
Part #51452-29960-000
Bolt (Ref #14)
14
Part #01500-1240B-000
Пластина замка (Ref #16)
16
Part #08321-0106A-000
Болт (Ref #17)
17
Part #02112-36107-000
Болт (Ref #17)
17
Part #02112-06107-000
CLIP,BRAKE CABLE (Ref #18)
18
Part #51453-05110-000
BRACKET,FR FORK UPR (Ref #19)
19
Part #51311-29920-1UF
Bolt (Ref #20)
20
Part #01500-10407-000
Шайба (Ref #21)
21
Part #09160-10123-000
Clip (Ref #22)
22
Part #51455-29330-000
Крышка двигателя, нижняя (Ref #24)
24
Part #08321-01107-000
HOLDER,HANDLE(BLACK) (Ref #25)
25
Part #56211-29320-291
BOLT,HANDLE HOLDER(8X35) (Ref #26)
26
Part #51321-27C20-000
BOLT,FR FORK(10X33) (Ref #27)
27
Part #51351-29400-000
WASHER,STEM HEAD(10.5X30X3.2) (Ref #28)
28
Part #51356-22012-000
LOCK SET,STEERING (Ref #29)
29
Part #51900-24820-000
Винт (Ref #30)
30
Part #02112-3512A-000
BRACKET,HEADLAMP HOUSING,R (Ref #31)
31
Part #51530-29960-000
BRACKET,HEADLAMP HOUSING,L (Ref #32)
32
Part #51540-29960-000
-
1608321-01063-000
Шайба, стопорная
1Replaced by 08321-0106A-000 Доступно: Нет в наличии
-
2556211-29960-000
Держатель рукоятки нижний
2Replaced by 56211-29320-291 Доступно: Нет в наличии
