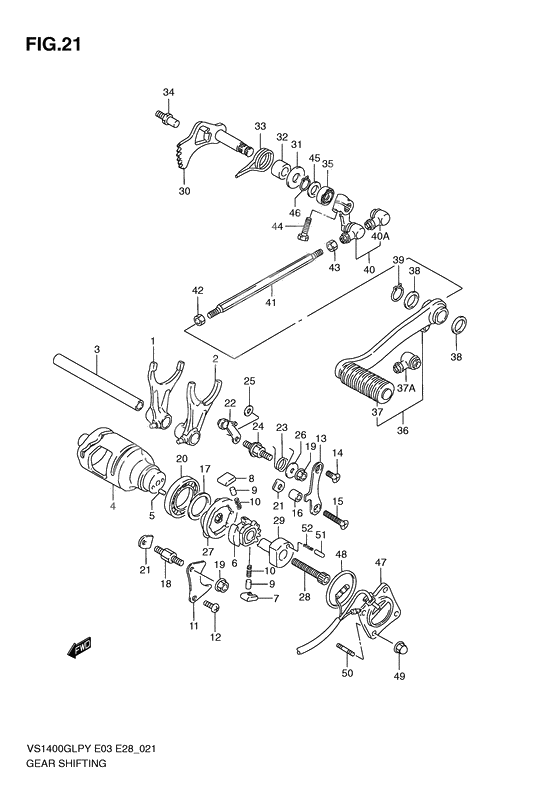

Gear shifting Model t
Gear shifting Model t
Fork, gear shif (Ref #1)
1
Part #25211-38B00-000
Fork, gear shif (Ref #2)
2
Part #25221-38B00-000
GEAR SHAFT (Ref #3)
3
Part #25411-38B01-000
CAM,GEAR SHIFT (Ref #4)
4
Part #25310-38B01-000
шпонка ведомой звездочки балансира (Ref #5)
5
Part #04221-04089-000
GEAR,GEAR SHIFT CAM DRIVEN (Ref #6)
6
Part #25322-31310-000
PAWL,GEAR SHIFT NO.1 (Ref #7)
7
Part #25323-34201-000
PAWL,GEAR SHIFT NO.2 (Ref #8)
8
Part #25324-34201-000
PIN(5X8) (Ref #9)
9
Part #09261-05003-000
PIN(5X8) (Ref #9)
9
Part #09261-05003-000
PIN(5X8) (Ref #9)
9
Part #09261-05003-000
PIN(5X8) (Ref #9)
9
Part #09261-05003-000
Spring (Ref #10)
10
Part #09440-04003-000
Spring (Ref #10)
10
Part #09440-04003-000
Spring (Ref #10)
10
Part #09440-04003-000
Spring (Ref #10)
10
Part #09440-04003-000
LIFTER,GEAR SHIFT POLE (Ref #11)
11
Part #25331-38B00-000
Винт 6X12 (Ref #12)
12
Part #02112-0612A-000
Винт 6X12 (Ref #12)
12
Part #02112-0612B-000
GUIDE,GEAR SHIFT CAM (Ref #13)
13
Part #25341-38B00-000
Болт (Ref #14)
14
Part #02122-0612B-000
Болт (Ref #14)
14
Part #02122-0612A-000
Болт (Ref #15)
15
Part #02122-0630B-000
SPACER(6.5X10X14) (Ref #16)
16
Part #09180-06293-000
Шайба (Ref #17)
17
Part #09160-25059-000
BOSS,SHIFT POLE LIFTER (Ref #18)
18
Part #25332-38A10-000
Гайка (Ref #19)
19
Part #08316-1006B-000
Гайка (Ref #19)
19
Part #08316-1006B-000
Гайка (Ref #19)
19
Part #08316-1006B-000
Гайка (Ref #19)
19
Part #08316-1006B-000
BEARING(25X47X8) (Ref #20)
20
Part #09262-25006-000
Retainer (Ref #21)
21
Part #24741-21A00-000
Retainer (Ref #21)
21
Part #24741-21A00-000
Retainer (Ref #21)
21
Part #24741-21A00-000
Retainer (Ref #21)
21
Part #24741-21A00-000
STOPPER,GEAR SHIFT CAM (Ref #22)
22
Part #25350-38B00-000
Пружина (Ref #23)
23
Part #09448-17024-000
SUPPORT,CAM STOPPER ARM (Ref #24)
24
Part #25356-12C00-000
Шайба (Ref #25)
25
Part #08211-06141-000
Шайба (Ref #26)
26
Part #09160-06121-000
PLATE,GEAR SHIFT CAM (Ref #27)
27
Part #25380-38B00-000
Bolt (Ref #28)
28
Part #07130-0640B-000
HOLDER,NEUTRAL SWITCH (Ref #29)
29
Part #25312-38B01-000
SHAFT,GEAR SHIFT (Ref #30)
30
Part #25510-38B00-000
Шайба (Ref #31)
31
Part #09160-12091-000
Пружина (Ref #32)
32
Part #09180-12068-000
Пружина (Ref #33)
33
Part #09444-26021-000
STOPPER,SHIFT ARM (Ref #34)
34
Part #25671-38B00-000
Shift shaft oil (Ref #35)
35
Part #09285-12006-000
LEVER ASSY,GEAR SHIFT (Ref #36)
36
Part #25600-38B01-000
RUBBER,GEAR SHIFT PEDAL (Ref #37)
37
Part #25652-38B00-000
Пыльник (Ref #37A)
37A
Part #25526-47000-000
Шайба (Ref #38)
38
Part #09160-14054-000
Шайба (Ref #38)
38
Part #09160-14054-000
Шайба (Ref #38)
38
Part #09160-14054-000
Шайба (Ref #38)
38
Part #09160-14054-000
Circlip (Ref #39)
39
Part #08331-3114A-000
ARM,GEAR SHIFT LINK (Ref #40)
40
Part #25520-38B00-000
ROD,GEAR SHIFT LINK (Ref #41)
41
Part #25525-38B00-000
Гайка (Ref #42)
42
Part #09140-06011-000
Гайка (Ref #43)
43
Part #08310-00067-000
Bolt (Ref #44)
44
Part #01500-06207-000
Шайба (Ref #45)
45
Part #09181-12167-000
Circlip (Ref #46)
46
Part #08331-3112A-000
BASE ASSY,NEUTRAL SW TERMINAL (Ref #47)
47
Part #37720-38B00-000
O RING(D:2.4,ID:35.5) (Ref #48)
48
Part #09280-35006-000
Гайка (Ref #49)
49
Part #08313-2005A-000
Болт (Ref #50)
50
Part #09108-05010-000
Pin (Ref #51)
51
Part #09209-04021-000
Пружина (Ref #52)
52
Part #09440-02003-000
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
