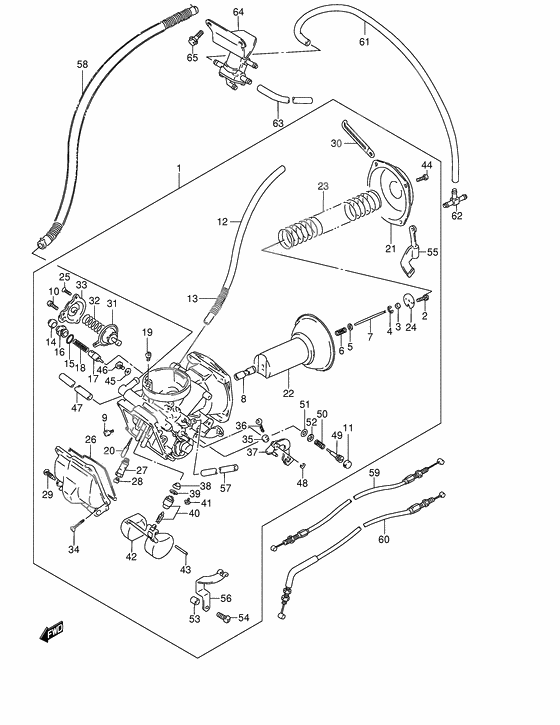

Front carburetor
Front carburetor
Carburetor assy, fr (Ref #1)
1
Part #13210-48EG0-000
CARBURETOR ASSY,FR (Ref #1)
1
Part #13210-48EF0-000
Болт (Ref #2)
2
Part #02112-33073-000
Ring (Ref #3)
3
Part #13387-47010-000
Clip (Ref #4)
4
Part #13394-10010-000
Шайба (Ref #5)
5
Part #13382-03110-000
Пружина (Ref #6)
6
Part #13388-44030-000
Жиклер (Ref #7)
7
Part #13383-48E80-000
Жиклер игольчатый (Ref #8)
8
Part #09494-00901-000
Болт (Ref #9)
9
Part #13605-38B00-000
Болт (Ref #10)
10
Part #02112-04107-000
Plug (Ref #11)
11
Part #13281-05A00-000
Hose (Ref #12)
12
Part #13683-19B80-000
Пружина (Ref #13)
13
Part #13689-38A00-000
Cap (Ref #14)
14
Part #13681-04011-000
O ring (Ref #15)
15
Part #13278-47090-000
HOLDER,GUIDE (Ref #16)
16
Part #13418-38A00-000
Плунжер (Ref #17)
17
Part #13411-01400-000
Пружина (Ref #18)
18
Part #13417-08210-000
Ось жиклера (Ref #19)
19
Part #09492-65005-000
Жиклер (40) (Ref #20)
20
Part #09492-40021-000
COVER,DIAPHRAGM (Ref #21)
21
Part #13502-38A00-000
DIAPHRAGM,CARBURETOR (Ref #22)
22
Part #13500-05A10-000
Пружина (Ref #23)
23
Part #13503-38B00-000
Plate (Ref #24)
24
Part #13389-37400-000
Болт (Ref #25)
25
Part #02122-0410A-000
O RING,FLOAT CHAMBER (Ref #26)
26
Part #13251-38A00-000
HOLDER,MAIN JET (Ref #27)
27
Part #13385-05A11-000
Жиклер главный 90 (Ref #28)
28
Part #09491-90011-000
Заглушка дренажная (Ref #29)
29
Part #13247-02340-000
Clamp (l:80) (Ref #30)
30
Part #09404-06432-000
Diaphragm assy (Ref #31)
31
Part #13480-05A10-000
Пружина (Ref #32)
32
Part #13481-45C10-000
Cover (Ref #33)
33
Part #13484-38A00-000
Болт (Ref #34)
34
Part #13602-48B10-000
Гайка (Ref #35)
35
Part #08310-00047-000
Болт (Ref #36)
36
Part #02112-04307-000
Lever assy (Ref #37)
37
Part #13554-45C20-000
Filter (Ref #38)
38
Part #13376-19F00-000
O RING,NEEDLE VALVE SEAT (Ref #39)
39
Part #13374-35C00-000
Клапан (Ref #40)
40
Part #13370-39A00-000
Болт (Ref #41)
41
Part #13602-05A10-000
Поплавок (Ref #42)
42
Part #13250-38B00-000
Поплавок (Ref #43)
43
Part #13254-20010-000
Болт (Ref #44)
44
Part #02112-05127-000
Прокладка (Ref #45)
45
Part #13523-46110-000
Болт (Ref #46)
46
Part #09125-05122-000
E ring (Ref #48)
48
Part #13415-38300-000
Винт топливный (Ref #49)
49
Part #13279-47070-000
Пружина (Ref #50)
50
Part #13268-47070-000
O RING,PILOT AIR SCREW (Ref #51)
51
Part #13295-29901-000
Шайба (Ref #52)
52
Part #13291-29900-000
Ring (Ref #53)
53
Part #13331-33E00-000
Болт (Ref #54)
54
Part #13602-48E00-000
Bracket (Ref #55)
55
Part #13627-48E00-000
Bracket (Ref #56)
56
Part #13627-48E10-000
Шланг (Ref #57)
57
Part #13683-48E10-000
Шланг (Ref #58)
58
Part #13683-48E00-000
CABLE,IDLE SYNCRO (Ref #59)
59
Part #13641-48E00-000
CABLE,THROTTLE RETURN F-R (Ref #60)
60
Part #13642-48E00-000
Hose (Ref #61)
61
Part #13684-02F10-000
NIPPLE (Ref #62)
62
Part #13685-48B00-000
Шланг топливный (Ref #63)
63
Part #44421-13ER0-000
VALVE,AIR VENT (Ref #64)
64
Part #13590-48E00-000
Bolt (Ref #65)
65
Part #01550-0612B-000
Bolt (Ref #65)
65
Part #01550-0612A-000
-
2913247-13A00-000
Винт дренажный
1Replaced by 13247-02340-000 Доступно: Нет в наличии
-
5113295-29900-000
O RING,PILOT AIR SCREW
1Replaced by 13295-29901-000 Доступно: Нет в наличии
-
-
Цена: 670.00 р.
Доступно: 0
-
-
6309355-50105-600
Шланг топливный
1Replaced by 44421-13ER0-000 Доступно: Нет в наличии
