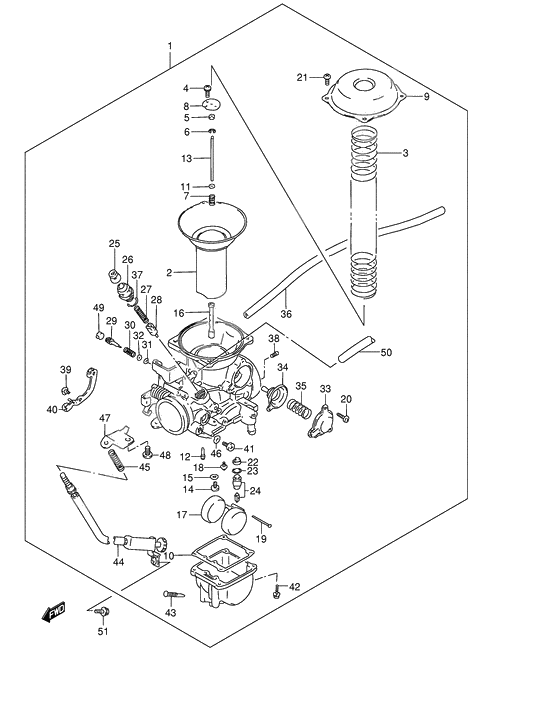

Rear carburetor
Rear carburetor
CARBURETOR ASSY,RR (Ref #1)
1
Part #13220-48EG0-000
CARBURETOR ASSY,RR (Ref #1)
1
Part #13220-48EF0-000
DIAPHRAGM,CARBURETOR (Ref #2)
2
Part #13500-38A10-000
Пружина (Ref #3)
3
Part #13503-38B00-000
Болт (Ref #4)
4
Part #02112-33073-000
Ring (Ref #5)
5
Part #13387-47010-000
Clip (Ref #6)
6
Part #13394-10010-000
Пружина (Ref #7)
7
Part #13388-44030-000
Plate (Ref #8)
8
Part #13389-37400-000
Cover (Ref #9)
9
Part #13502-45CE0-000
Прокладка (Ref #10)
10
Part #13251-38A10-000
Шайба (Ref #11)
11
Part #13382-44030-000
Жиклер пропускной (42.5) (Ref #12)
12
Part #09492-42010-000
Жиклер (Ref #13)
13
Part #13383-48E70-000
Жиклер главный (100) (Ref #14)
14
Part #09491-20017-000
Шайба (Ref #15)
15
Part #13382-03110-000
Жиклер игольчатый (Ref #16)
16
Part #09494-00902-000
Поплавок (Ref #17)
17
Part #13252-23010-000
Болт (Ref #18)
18
Part #13602-05A10-000
PIN,FLOAT (Ref #19)
19
Part #13254-92311-000
Болт (Ref #20)
20
Part #13602-19B50-000
Болт (Ref #21)
21
Part #13602-48B00-000
Filter (Ref #22)
22
Part #13376-19F00-000
O RING,NEEDLE VALVE SEAT (Ref #23)
23
Part #13374-35C00-000
Клапан (Ref #24)
24
Part #13370-39A00-000
Cap (Ref #25)
25
Part #13681-04011-000
HOLDER,GUIDE (Ref #26)
26
Part #13418-43410-000
Пружина (Ref #27)
27
Part #13417-22010-000
Плунжер (Ref #28)
28
Part #13411-01400-000
Винт топливный (Ref #29)
29
Part #13279-47070-000
Пружина (Ref #30)
30
Part #13268-47070-000
O RING,PILOT AIR SCREW (Ref #31)
31
Part #13295-29901-000
Шайба (Ref #32)
32
Part #13291-29900-000
Cover (Ref #33)
33
Part #13484-45C00-000
Diaphragm assy (Ref #34)
34
Part #13480-05A10-000
Пружина (Ref #35)
35
Part #13481-45C10-000
Hose (Ref #36)
36
Part #13683-19B80-000
O ring (Ref #37)
37
Part #13278-47090-000
JET,PILOT(70) (Ref #38)
38
Part #09492-70004-000
Болт (Ref #39)
39
Part #13602-05A30-000
LEVER,ASSY (Ref #40)
40
Part #13554-38A10-000
Болт (Ref #41)
41
Part #09125-05122-000
Болт (Ref #42)
42
Part #13601-04148-000
Заглушка дренажная (Ref #43)
43
Part #13247-02340-000
Регулятор (Ref #44)
44
Part #13267-48E00-000
Пружина (Ref #45)
45
Part #13271-93011-000
Прокладка (Ref #46)
46
Part #13523-46110-000
Bracket (Ref #47)
47
Part #13621-38A10-000
Болт (Ref #48)
48
Part #13602-06128-000
Plug (Ref #49)
49
Part #13281-05A00-000
Шланг (Ref #50)
50
Part #13683-38B01-000
Болт (Ref #51)
51
Part #01550-0610B-000
Болт (Ref #51)
51
Part #01550-0610A-000
-
3113295-29900-000
O RING,PILOT AIR SCREW
1Replaced by 13295-29901-000 Доступно: Нет в наличии
-
-
Цена: 670.00 р.
Доступно: 0
-
-
4313247-13A00-000
Винт дренажный
1Replaced by 13247-02340-000 Доступно: Нет в наличии
