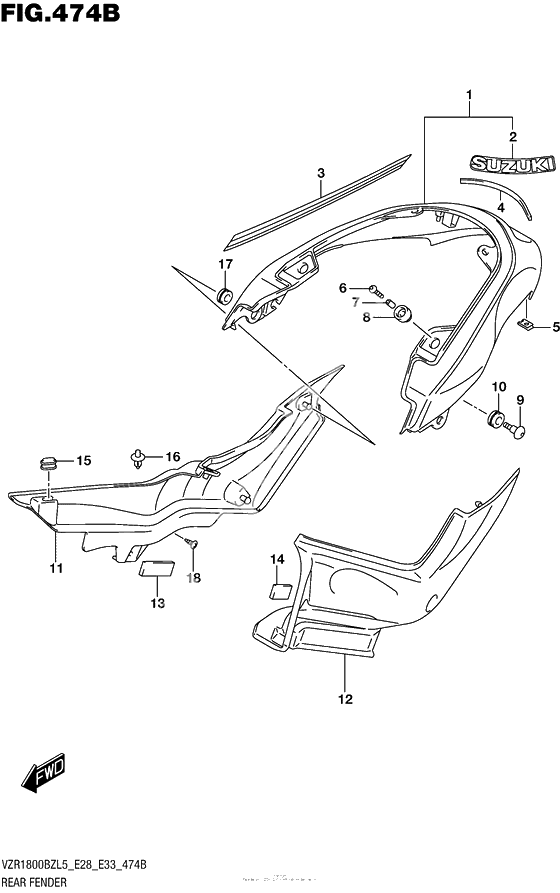

Rear Fender (Vzr1800Bzl5 E33)
Rear Fender (Vzr1800Bzl5 E33)
Fender,rear (Ref #1)
1
Part #63110-48G70-AV4
Fender,rear (Ref #1)
1
Part #63110-48G70-AR5
Tape set,rear fender (Ref #2)
2
Part #68170-48GB0-A7Q
Tape set,rear fender (Ref #2)
2
Part #68170-48GB0-A7D
EMBLEM,SUZUKI (Ref #3)
3
Part #68161-44GA0-APT
EMBLEM,SUZUKI (Ref #3)
3
Part #68161-44GA0-A71
CUSHION,RR FENDER RR COVER (Ref #4)
4
Part #63117-39G00-000
Гайка (Ref #5)
5
Part #94484-24F00-000
Болт (Ref #6)
6
Part #09139-06139-000
Кольцо/шайба (Ref #7)
7
Part #09180-06286-000
Cushion (Ref #8)
8
Part #09320-10045-000
Болт (Ref #9)
9
Part #09139-06190-000
Cushion (Ref #10)
10
Part #09320-09016-000
COVER,RR FENDER,R (Ref #11)
11
Part #63171-48G51-YVB
Cover,rear fender,r (Ref #11)
11
Part #63171-48G51-RB5
Cover,rear fender,l (Ref #12)
12
Part #63181-48G51-RB5
COVER,RR FENDER,L (Ref #12)
12
Part #63181-48G51-YVB
CUSHION,FUEL PIPE (Ref #13)
13
Part #15439-70G10-000
Cushion, fuel lid (Ref #14)
14
Part #47161-19C00-000
Валик крышки (Ref #15)
15
Part #44276-29G00-000
Clip (black) (Ref #16)
16
Part #09409-06314-5PK
Cushion (Ref #17)
17
Part #09320-08028-000
Болт (Ref #18)
18
Part #03541-0516A-000
