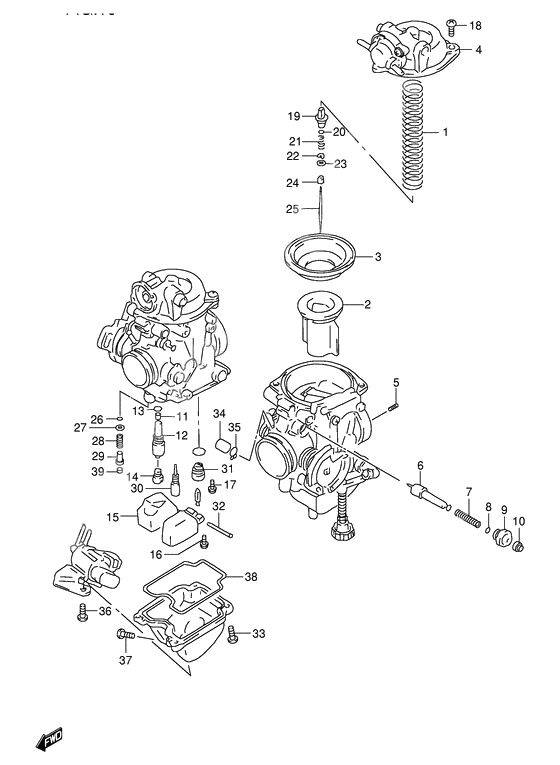

Carburetor assy
Carburetor assy
Пружина (Ref #1)
1
Part #13573-04F00-000
VALVE,PISTON (Ref #2)
2
Part #13501-04F30-000
VALVE,PISTON (Ref #2)
2
Part #13501-04F00-000
Diaphragm (Ref #3)
3
Part #13507-04F00-000
COVER ASSY,DIAPHRAGM,R (Ref #4)
4
Part #13502-04F10-000
COVER ASSY,DIAPHRAGM,L (Ref #4)
4
Part #13502-04F00-000
JET,PILOT AIR(155) (Ref #5)
5
Part #09492-31001-000
Жиклер (Ref #5)
5
Part #09492-30013-000
BLEEDER (Ref #6)
6
Part #13411-04F00-000
Пружина (Ref #7)
7
Part #13417-26D00-000
O ring (Ref #8)
8
Part #13278-47090-000
Держатель (Ref #9)
9
Part #13418-44080-000
CAP,STARTER VALVE (Ref #10)
10
Part #13682-31210-000
Жиклер игольчатый (Ref #11)
11
Part #09494-00907-000
HOLDER,JET (Ref #12)
12
Part #13385-04F00-000
O ring (Ref #13)
13
Part #13246-43010-000
Жиклер главный (122.5) (Ref #14)
14
Part #09491-24023-000
Жиклер главный (115) (Ref #14)
14
Part #09491-23012-000
Поплавок (Ref #15)
15
Part #13250-04F00-000
Болт (Ref #16)
16
Part #02112-0408A-000
Болт (Ref #17)
17
Part #13602-05A10-000
Болт (Ref #18)
18
Part #02112-05127-000
Holder (Ref #19)
19
Part #13418-33E00-000
O RING(D:1.9,ID:4.8) (Ref #20)
20
Part #09280-05004-000
Пружина (Ref #21)
21
Part #13481-04F00-000
E RING,MULTIPLE JET NOZZLE (Ref #22)
22
Part #13394-17E60-000
Шайба (Ref #23)
23
Part #13382-44030-000
Ring (Ref #24)
24
Part #13387-13F00-000
Ring (Ref #24)
24
Part #13387-44030-000
Жиклер (Ref #25)
25
Part #13383-04F40-000
Жиклер (Ref #25)
25
Part #13383-04F00-000
O RING,PILOT AIR SCREW (Ref #26)
26
Part #13295-29901-000
Шайба (Ref #27)
27
Part #13291-29900-000
Пружина (Ref #28)
28
Part #13268-48700-000
Винт топливный (Ref #29)
29
Part #13279-33E00-000
JET,PILOT(22.5) (Ref #30)
30
Part #09492-22014-000
Жиклер пропускной (20) (Ref #30)
30
Part #09492-20024-000
Клапан (Ref #31)
31
Part #13370-04F00-000
Клапан (Ref #31)
31
Part #13370-04F40-000
PIN,FLOAT (Ref #32)
32
Part #13254-01010-000
Болт (Ref #33)
33
Part #02112-04107-000
Cap (Ref #34)
34
Part #13274-84000-000
Clip (Ref #35)
35
Part #09401-06101-000
Заглушка дренажная (Ref #37)
37
Part #13247-02340-000
Прокладка (Ref #38)
38
Part #13258-04F00-000
Plug (Ref #39)
39
Part #13281-05A00-000
-
13201-04F10-000
Carburetor assy, lh
1Replaced by 13201-04F11-000 Доступно: Нет в наличии
-
13202-04F00-000
Carburetor assy, rh
1Replaced by 13202-04F01-000 Доступно: Нет в наличии
-
13201-04F00-000
Carburetor assy, lh
1Replaced by 13201-04F01-000 Доступно: Нет в наличии
-
2613295-29900-000
O RING,PILOT AIR SCREW
2Replaced by 13295-29901-000 Доступно: Нет в наличии
-
-
Цена: 670.00 р.
Доступно: 0
-
