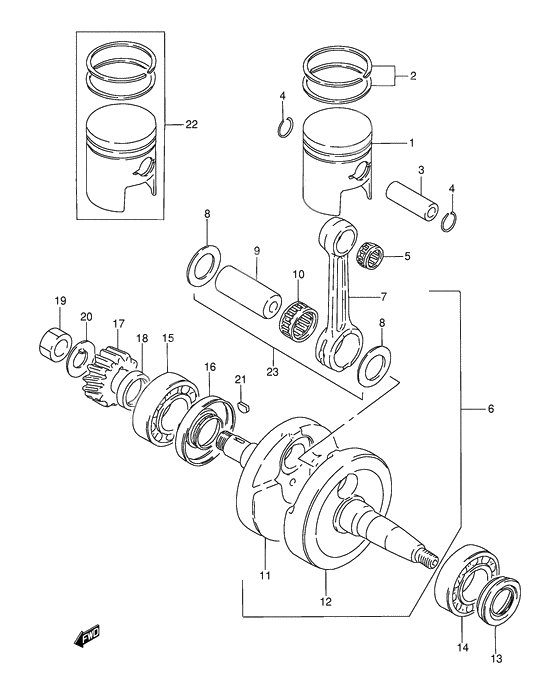

Crankshaft
Crankshaft
Piston (Ref #1)
1
Part #12110-23460-0F0
Кольца поршневые (Ref #2)
2
Part #12140-234A0-100
Кольца поршневые (Ref #2)
2
Part #12140-234A0-050
Ring set,piston (Ref #2)
2
Part #12140-234A0-000
Палец поршня (Ref #3)
3
Part #12151-23400-0A0
Кольцо стопорное (Ref #4)
4
Part #09381-14001-000
Кольцо стопорное (Ref #4)
4
Part #09381-14001-000
Кольцо стопорное (Ref #4)
4
Part #09381-14001-000
Кольцо стопорное (Ref #4)
4
Part #09381-14001-000
Подшипник поршня (Ref #5)
5
Part #09263-14022-000
Вал коленчатый (Ref #6)
6
Part #12200-23460-000
Шатун (Ref #7)
7
Part #12161-05B00-000
Шайба (Ref #8)
8
Part #09160-22010-000
Шайба (Ref #8)
8
Part #09160-22010-000
Шайба (Ref #8)
8
Part #09160-22010-000
Шайба (Ref #8)
8
Part #09160-22010-000
Палец шатунный (Ref #9)
9
Part #12211-05B00-000
BEARING(22X28X17) (Ref #10)
10
Part #09263-22046-000
Crankshaft, rh (Ref #11)
11
Part #12221-23460-000
Crankshaft, lh (Ref #12)
12
Part #12261-23460-0A0
Сальник (Ref #13)
13
Part #09283-20034-000
Подшипник B1 25X52X15 (Ref #14)
14
Part #09262-25070-0A0
Bearing (20x52x15) (Ref #15)
15
Part #09262-20073-000
SEAL,OIL(26X52X8) (Ref #16)
16
Part #09283-26007-000
GEAR,PRIMARY DRIVE(NT:16) (Ref #17)
17
Part #21111-07001-0A0
SPACER(20X28X7) (Ref #18)
18
Part #09180-20037-000
Nut (Ref #19)
19
Part #09140-14002-000
Шайба (Ref #20)
20
Part #09166-14008-000
Ключ (Ref #21)
21
Part #09420-04008-000
Piston set (os:1.0) (Ref #22)
22
Part #12100-23460-100
PISTON SET(OS:0.5) (Ref #22)
22
Part #12100-23460-050
CONNECTING ROD SET (Ref #23)
23
Part #12105-23820-000
