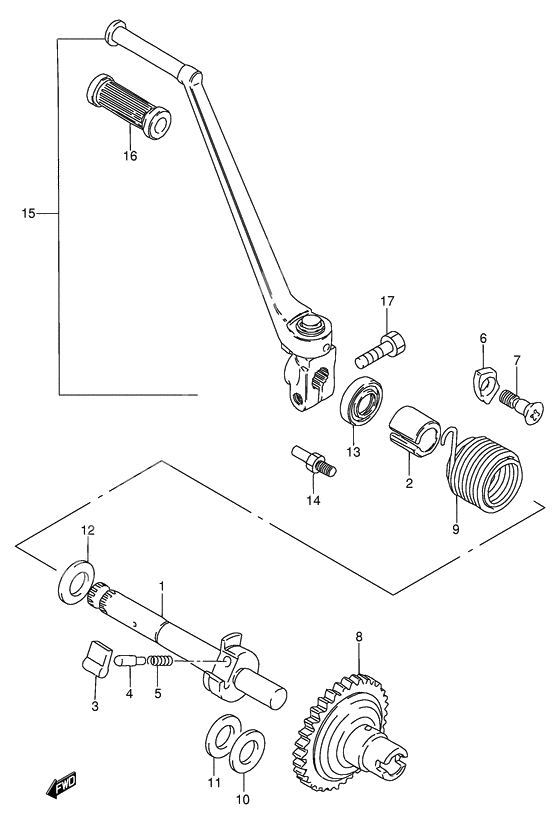

Kick starter
Kick starter
Shaft, kick starter (Ref #1)
1
Part #26211-23401-000
GUIDE,KICK STARTER SFT SPRING (Ref #2)
2
Part #26221-46000-000
PAWL,KICK STARTER (Ref #3)
3
Part #26231-20000-000
PIN(5X15.5) (Ref #4)
4
Part #09209-05011-000
Spring (Ref #5)
5
Part #09440-04010-000
LIFTER,KICK STARTER PAWL (Ref #6)
6
Part #26232-01000-000
Болт (Ref #7)
7
Part #02122-0616B-000
GEAR,KICK STARTER DRIIVE (Ref #8)
8
Part #26241-12010-000
Пружина (Ref #9)
9
Part #09448-41003-000
Шайба (Ref #10)
10
Part #09164-12024-000
WASHER (Ref #11)
11
Part #08211-12302-000
Шайба (Ref #12)
12
Part #09160-16016-000
SEAL,OIL(16X30X8) (Ref #13)
13
Part #09285-16002-000
BOLT,KICK START SHAFT SPR HOOK (Ref #14)
14
Part #26237-20400-000
Lever assy, kick starter (Ref #15)
15
Part #26300-23401-000
RUBBER,KICK STARTER PEDAL (Ref #16)
16
Part #26352-01000-000
Bolt (Ref #17)
17
Part #01500-0825A-000
