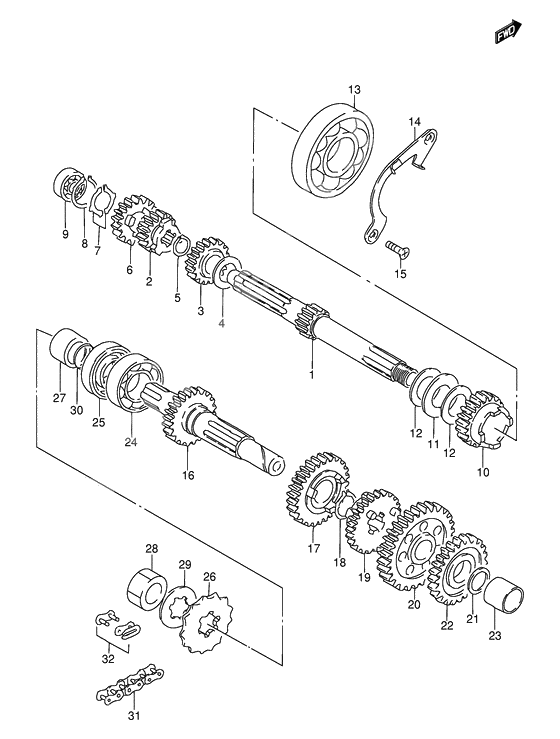

Transmission
Transmission
SHAFT,COUNTER (Ref #1)
1
Part #24121-12003-000
GEAR,2ND DRIVE (Ref #2)
2
Part #24221-23001-000
Gear, 3rd drive (nt:18) (Ref #3)
3
Part #24231-12021-000
Шайба (Ref #4)
4
Part #09181-17139-000
Circlip (Ref #5)
5
Part #09380-17001-000
GEAR,4TH DRIVE (Ref #6)
6
Part #24241-12021-000
Ring (Ref #7)
7
Part #09399-14001-000
RING,SNAP (Ref #8)
8
Part #09380-26001-000
Bearing (Ref #9)
9
Part #09262-12001-000
GEAR,KICK STARTER DRIVEN (Ref #10)
10
Part #26280-23010-000
BEARING(21X32X2) (Ref #11)
11
Part #09263-21007-000
Шайба (Ref #12)
12
Part #09160-21007-000
Шайба (Ref #12)
12
Part #09160-21007-000
Шайба (Ref #12)
12
Part #09160-21007-000
Шайба (Ref #12)
12
Part #09160-21007-000
BEARING(30X62X10) (Ref #13)
13
Part #09262-30003-000
RETAINER,CNTR SHAFT BEARING (Ref #14)
14
Part #24741-12010-000
Болт (Ref #15)
15
Part #02122-0612A-000
SHAFT,DRIVE (Ref #16)
16
Part #24131-12022-000
GEAR,2ND DRIVEN (Ref #17)
17
Part #24321-12021-000
Стопорное кольцо (пружинное) (Ref #18)
18
Part #08331-3120A-000
GEAR,3RD & 4TH DRIVE (Ref #19)
19
Part #24331-12021-000
GEAR,1ST DRIVEN (Ref #20)
20
Part #24310-12021-000
Шайба (Ref #21)
21
Part #08211-15301-000
GEAR,KICK STARTER IDLE (Ref #22)
22
Part #26260-23010-000
Втулка (Ref #23)
23
Part #09303-15004-000
Bearing (Ref #24)
24
Part #09262-20069-000
Сальник торсионного вала (Ref #25)
25
Part #09283-25003-000
SPROCKET,ENGINE(NT:14) (Ref #26)
26
Part #27511-08720-000
Прокладка (Ref #27)
27
Part #09180-20016-000
Nut (Ref #28)
28
Part #09140-20012-000
Шайба блокирующая (Ref #29)
29
Part #09167-20009-000
O RING(D:1,ID:19.5) (Ref #30)
30
Part #09280-20001-000
CHAIN,DRIVE(126L) (Ref #31)
31
Part #27600-20910-126
Цепь (Ref #31)
31
Part #27600-20910-112
JOINT,CHAIN (Ref #32)
32
Part #27620-20911-000
-
