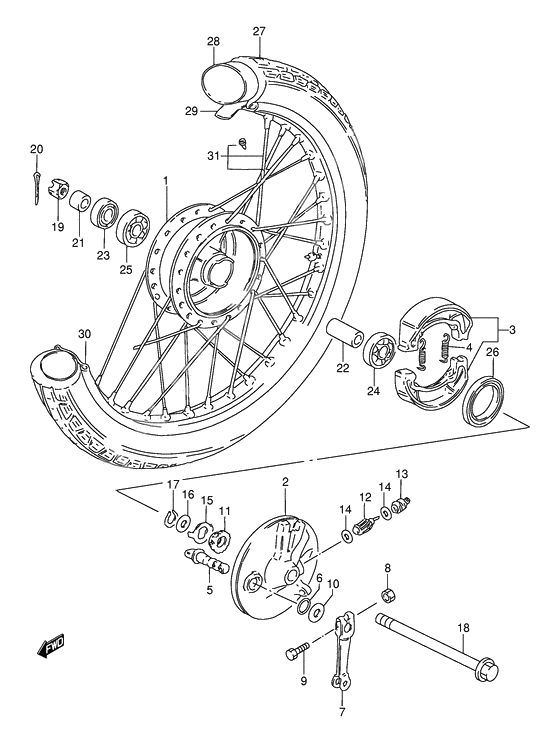

Transom + tube
Transom + tube
HUB,FR WHEEL (Ref #1)
1
Part #54110-46002-000
PANEL,FR BRAKE ANCHOR (Ref #2)
2
Part #54210-23452-000
SHOE & SPRING SET,BRAKE (Ref #3)
3
Part #54401-35880-000
Пружина (Ref #4)
4
Part #09443-07044-000
CAM,BRAKE (Ref #5)
5
Part #54441-29305-000
O ring (Ref #6)
6
Part #09280-14011-000
Рукоятка кулочка тормоза (Ref #7)
7
Part #54451-46110-000
Гайка (Ref #8)
8
Part #08316-1006B-000
BOLT(6X32) (Ref #9)
9
Part #09103-06045-000
Шайба (Ref #10)
10
Part #09160-14055-000
GEAR,SPEEDOMETER(NT:26) (Ref #11)
11
Part #54611-23202-000
GEAR,SPEEDOMETER (Ref #12)
12
Part #54621-23201-000
BUSH,SPEEDOMETER PINION OUTER (Ref #13)
13
Part #54632-02201-000
Плата (Ref #14)
14
Part #09160-05001-A05
Плата (Ref #14)
14
Part #09160-05001-A05
Плата (Ref #14)
14
Part #09160-05001-A05
Плата (Ref #14)
14
Part #09160-05001-A05
DRIVER,SPEEDOMETER GEAR (Ref #15)
15
Part #54661-03000-000
WASHER(16X22X1) (Ref #16)
16
Part #09160-16005-000
Circlip (Ref #17)
17
Part #08331-3115A-000
AXLE,FR (Ref #18)
18
Part #54711-03602-000
Гайка (Ref #19)
19
Part #09141-10006-000
20 x 20 cotter (Ref #20)
20
Part #04111-2020A-000
SPACER,FR AXLE,L(10X15X13) (Ref #21)
21
Part #54751-22C00-000
SPACER(10.1X16X51) (Ref #22)
22
Part #09180-10148-000
SEAL,OIL(15X31X5) (Ref #23)
23
Part #09284-15001-000
Bearing (Ref #24)
24
Part #08143-63007-000
Bearing (Ref #25)
25
Part #08113-62007-000
Сальник (Ref #26)
26
Part #09283-43004-000
TIRE,FR(2.50-18 40L NF2) (Ref #27)
27
Part #55100-14012-000
Внутренняя трубка (Ref #28)
28
Part #55200-14010-000
PROTECTOR,INNER TUBE (Ref #29)
29
Part #55261-11010-000
RIM,WHEEL(1.40X18) (Ref #30)
30
Part #55311-12120-000
SPOKE SET,FR (Ref #31)
31
Part #55320-21200-000
-
2004111-20208-000
20 x 20 cotter
1Replaced by 04111-2020A-000 Доступно: Нет в наличии
