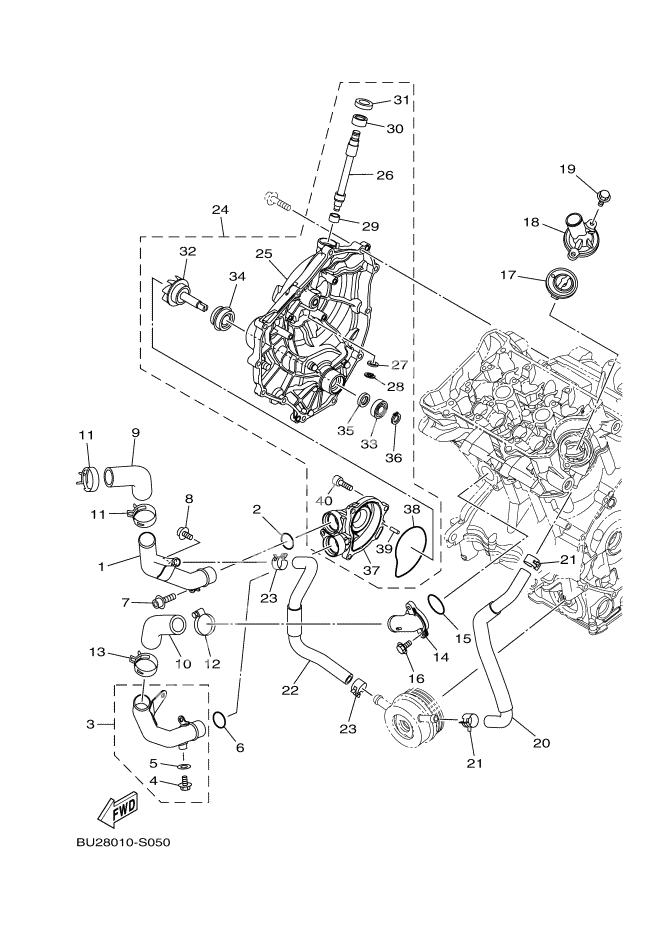

Водяной насос
Водяной насос
Pipe 1 (Ref #1)
1
Part #1WS-12481-00
O-RING (Ref #2)
2
Part #93210-235A1
Pipe 2 (Ref #3)
3
Part #1WS-12482-00
Bolt, Flange (Ref #4)
4
Part #95022-06010
. GASKET (Ref #5)
5
Part #90430-06014
Bolt, Hexagon Socket Head (Ref #7)
7
Part #91314-06014
Bolt, Hexagon Socket Head (Ref #8)
8
Part #90110-06152
Hose 1 (Ref #9)
9
Part #1WS-12576-00
Clip (Ref #11)
11
Part #90467-290A0
Clip (Ref #11)
11
Part #90467-290A0
Clip (Ref #11)
11
Part #90467-290A0
Clip (Ref #11)
11
Part #90467-290A0
Hose Clamp Assy (Ref #12)
12
Part #90450-35001
Joint 1 (Ref #14)
14
Part #1WS-12469-10
O-Ring (Ref #15)
15
Part #93210-33006
Bolt, Flange (Ref #16)
16
Part #95812-06020
Thermostat assy (Ref #17)
17
Part #1WS-12410-01
Cover, Thermostat (Ref #18)
18
Part #1WS-12413-10
Bolt, Flange (Ref #19)
19
Part #95817-06020
Hose 5 (Ref #20)
20
Part #1WS-12588-00
Clip (Ref #21)
21
Part #90467-170A6
Clip (Ref #21)
21
Part #90467-170A6
Clip (Ref #21)
21
Part #90467-170A6
Clip (Ref #21)
21
Part #90467-170A6
Hose 6 (Ref #22)
22
Part #1WS-12589-00
Water Pump Assy (Ref #24)
24
Part #1WS-12420-10
. COVER, CRANKCASE 2 (Ref #25)
25
Part #1WS-15421-10
. AXLE, PUSH LEVER (Ref #26)
26
Part #2D1-16382-00
Washer, Plate (Ref #27)
27
Part #92907-08600
Circlip (Ref #28)
28
Part #99001-07600
. BEARING (Ref #29)
29
Part #93317-11096
. BEARING (Ref #30)
30
Part #93315-21570
OIL SEAL (Ref #31)
31
Part #93102-15212
. IMPELLER SHAFT ASSY (Ref #32)
32
Part #1WS-12450-00
. BEARING (Ref #33)
33
Part #93306-00106
. SEAL, MECHANICAL (Ref #34)
34
Part #5VK-12438-00
. SEAL (Ref #35)
35
Part #2CR-13338-00
. CIRCLIP (Ref #36)
36
Part #99009-12400
. COVER, HOUSING (Ref #37)
37
Part #1WS-12422-10
. O-RING (Ref #38)
38
Part #1WS-12439-00
Pin, Dowel (Ref #39)
39
Part #93603-12007
. BOLT, HEXAGON SOCKET HEAD (Ref #40)
40
Part #90110-06274
