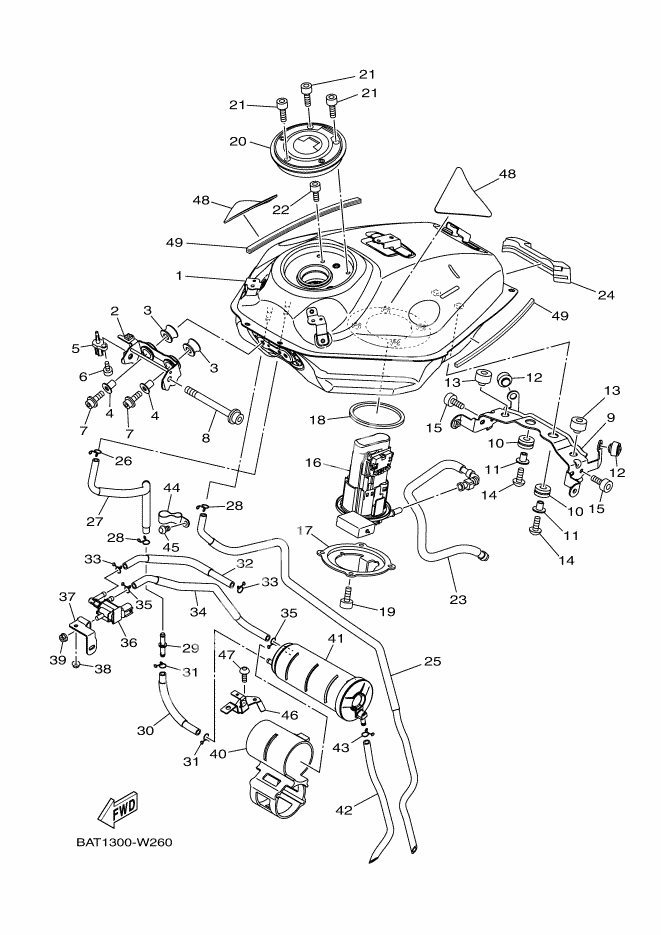

Fuel tank
Fuel tank
FUEL TANK COMP. (Ref #1)
1
Part #BAT-24110-00
Bracket, Tank Fitting (Ref #2)
2
Part #BAT-2412Y-01
Grommet (Ref #3)
3
Part #3D7-24339-00
Grommet (Ref #3)
3
Part #3D7-24339-00
Grommet (Ref #3)
3
Part #3D7-24339-00
Grommet (Ref #3)
3
Part #3D7-24339-00
Collar (Ref #4)
4
Part #90387-06136
Collar (Ref #4)
4
Part #90387-06136
Collar (Ref #4)
4
Part #90387-06136
Collar (Ref #4)
4
Part #90387-06136
Sensor, Air Temperature (Ref #5)
5
Part #5YU-85886-00
Screw, Pan Head (Ref #6)
6
Part #98502-05012
Bolt, Hexagon Socket Head (Ref #7)
7
Part #90110-06172
Bolt, Hexagon Socket Head (Ref #7)
7
Part #90110-06172
Bolt, Hexagon Socket Head (Ref #7)
7
Part #90110-06172
Bolt, Hexagon Socket Head (Ref #7)
7
Part #90110-06172
Bolt, Flange (Ref #8)
8
Part #95817-08100
Bracket, Tank Fitting (Ref #9)
9
Part #BAT-2413Y-00
Grommet (Ref #10)
10
Part #90480-16003
Grommet (Ref #10)
10
Part #90480-16003
Grommet (Ref #10)
10
Part #90480-16003
Grommet (Ref #10)
10
Part #90480-16003
Collar (Ref #11)
11
Part #90387-06287
Collar (Ref #11)
11
Part #90387-06287
Collar (Ref #11)
11
Part #90387-06287
Collar (Ref #11)
11
Part #90387-06287
Stopper, Main Stand (Ref #12)
12
Part #5UY-27114-00
Stopper, Main Stand (Ref #12)
12
Part #5UY-27114-00
Stopper, Main Stand (Ref #12)
12
Part #5UY-27114-00
Stopper, Main Stand (Ref #12)
12
Part #5UY-27114-00
Stopper, Main Stand (Ref #13)
13
Part #278-27114-00
Stopper, Main Stand (Ref #13)
13
Part #278-27114-00
Stopper, Main Stand (Ref #13)
13
Part #278-27114-00
Stopper, Main Stand (Ref #13)
13
Part #278-27114-00
Bolt,hex. Socket Button (Ref #14)
14
Part #90111-06084
Bolt,hex. Socket Button (Ref #14)
14
Part #90111-06084
Bolt,hex. Socket Button (Ref #14)
14
Part #90111-06084
Bolt,hex. Socket Button (Ref #14)
14
Part #90111-06084
ボルト,ソケツトヘツド (Ref #15)
15
Part #91317-06012
ボルト,ソケツトヘツド (Ref #15)
15
Part #91317-06012
ボルト,ソケツトヘツド (Ref #15)
15
Part #91317-06012
ボルト,ソケツトヘツド (Ref #15)
15
Part #91317-06012
FUEL PUMP COMP. (Ref #16)
16
Part #1WS-13907-10
Bracket, Fuel Pump (Ref #17)
17
Part #1WS-24491-01
O-Ring (Ref #18)
18
Part #1RC-24486-00
Bolt, Hexagon Socket Head (Ref #19)
19
Part #91312-05010
Cap assy (Ref #20)
20
Part #39P-24602-00
Bolt, Hexagon Socket Head (Ref #22)
22
Part #91317-05010
Pipe, Fuel 1 (Ref #23)
23
Part #1WS-13971-01
Damper, Side Cover (Ref #24)
24
Part #B4C-2411J-00
Pipe, overflow (Ref #25)
25
Part #2RC-24318-00
CLIP (Ref #26)
26
Part #90467-090A2
Pipe 10 (Ref #27)
27
Part #B2G-24321-00
JOINT (Ref #29)
29
Part #4XY-14568-00
Pipe 11 (Ref #30)
30
Part #B2G-24322-00
Pipe 2 (Ref #32)
32
Part #BAT-24312-00
Pipe 3 (Ref #34)
34
Part #BAT-24313-00
SOLENOID VALVE ASSY (Ref #36)
36
Part #BG4-86120-00
Bracket, Canistor (Ref #37)
37
Part #BAT-2419F-00
Nut, flange (Ref #38)
38
Part #95707-05500
Nut, flange (Ref #39)
39
Part #95707-06500
Damper, Locating 2 (Ref #40)
40
Part #2RC-24182-00
Canister Assy (Ref #41)
41
Part #BW3-F4170-00
Hose (Ref #42)
42
Part #90445-10069
Clamp 1 (Ref #44)
44
Part #1WS-24135-00
Bolt, Button Head (Ref #45)
45
Part #92017-06010
Bracket, Canistor (Ref #46)
46
Part #2RC-2419F-00
BOLT (Ref #47)
47
Part #90111-06119
Damper, Plate 1 (Ref #48)
48
Part #BAT-2414H-00
Damper, Plate 1 (Ref #48)
48
Part #BAT-2414H-00
Damper, Plate 1 (Ref #48)
48
Part #BAT-2414H-00
Damper, Plate 1 (Ref #48)
48
Part #BAT-2414H-00
Mold, Fuel Tank (Ref #49)
49
Part #3D7-24188-00
Mold, Fuel Tank (Ref #49)
49
Part #3D7-24188-00
Mold, Fuel Tank (Ref #49)
49
Part #3D7-24188-00
Mold, Fuel Tank (Ref #49)
49
Part #3D7-24188-00
