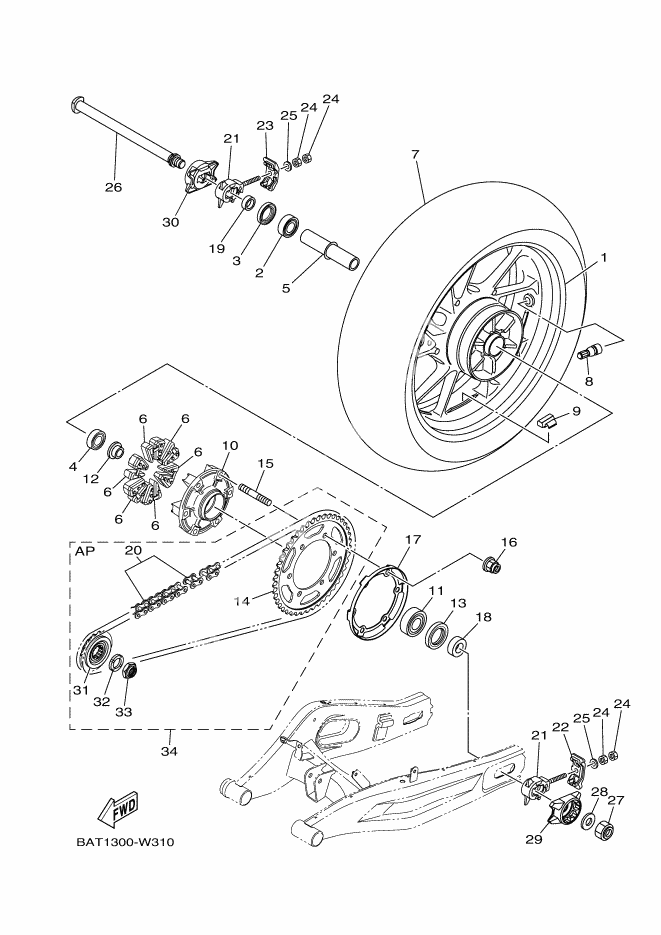

Rear wheel
Rear wheel
Диск заднего колеса (DPBM15, тёмно-синий) (Ref #1)
1
Part #2DR-25338-00-P0
BEARING (Ref #2)
2
Part #93306-20480
Oil Seal (Ref #3)
3
Part #93102-28022
Bearing (Ref #4)
4
Part #93306-00416
Spacer, Bearing (Ref #5)
5
Part #2PP-25317-00
* (Ref #7)
7
Part #
VALVE, RIM (TR412) (Ref #8)
8
Part #93900-00030
バランサ,ホイール (30G) (Ref #9)
9
Part #5MT-25398-20
バランサ,ホイール (20G) (Ref #9)
9
Part #5MT-25398-10
バランサ,ホイール (10G) (Ref #9)
9
Part #5MT-25398-00
Clutch, Hub (Ref #10)
10
Part #5JJ-25366-00
Bearing (Ref #11)
11
Part #93306-205B5
Collar, Wheel (Ref #12)
12
Part #1RC-25383-00
Oil seal (Ref #13)
13
Part #93106-40013
Sprocket, Driven (43T) (Ref #14)
14
Part #1WS-25443-00
Bolt, Stud (Ref #15)
15
Part #90116-10048
NUT, S/L FLANGE (Ref #16)
16
Part #95602-10200
Bracket 1 (Ref #17)
17
Part #1RC-2537W-01
Collar (Ref #18)
18
Part #90387-20036
Collar (Ref #19)
19
Part #90387-20035
CHAIN (DID525V11 108LE) (Ref #20)
20
Part #94582-49108
Puller, Chain 1 (Ref #21)
21
Part #1WS-25388-00
Puller, Chain 1 (Ref #21)
21
Part #1WS-25388-00
Puller, Chain 1 (Ref #21)
21
Part #1WS-25388-00
Puller, Chain 1 (Ref #21)
21
Part #1WS-25388-00
End 1 (Ref #22)
22
Part #1WS-22174-00
End 1 (Ref #23)
23
Part #1WS-22175-00
WASHER, PLATE (Ref #25)
25
Part #92902-08600
WASHER, PLATE (Ref #25)
25
Part #92902-08600
WASHER, PLATE (Ref #25)
25
Part #92902-08600
WASHER, PLATE (Ref #25)
25
Part #92902-08600
Shaft, Pivot (Ref #26)
26
Part #4FN-22141-00
Nut, Self-Locking (Ref #27)
27
Part #90185-18009
Washer, Plate (Ref #28)
28
Part #90201-18021
Cover, Rear Axle 1 (Ref #29)
29
Part #1WS-2538D-00
Cover, Rear Axle 2 (Ref #30)
30
Part #1WS-2538N-00
Sprocket, Drive (16T) (Ref #31)
31
Part #1WS-17460-00
Washer, Conical Spring (Ref #32)
32
Part #90208-22002
NUT (Ref #33)
33
Part #90179-22018
CHAIN & SPROCKET KIT (Ref #34)
34
Part #BAT-W001A-00
