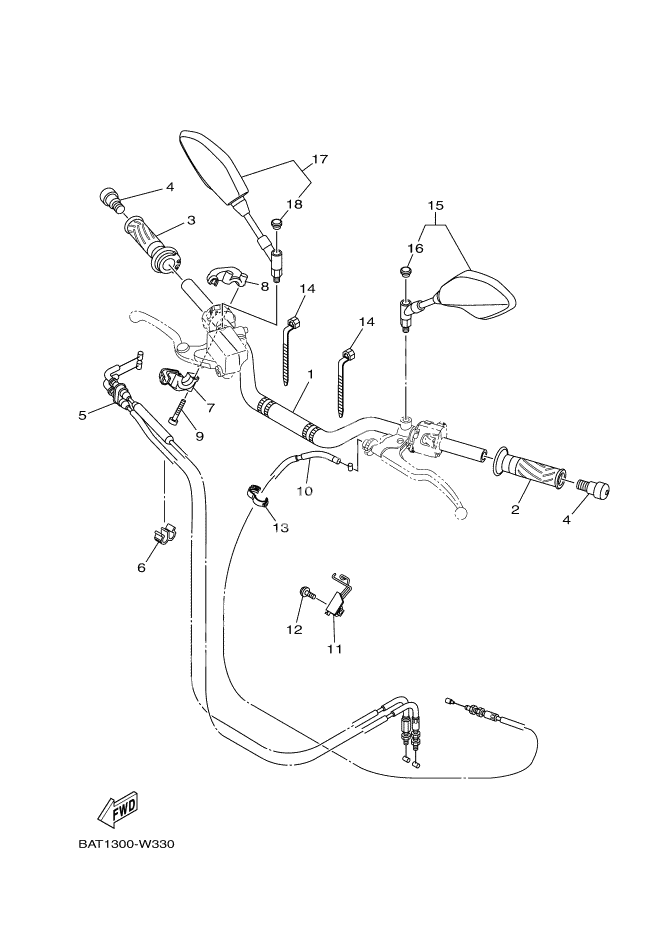

Steering handle & cable
Steering handle & cable
Handlebar (Ref #1)
1
Part #BAT-26111-00
Grip (Left) (Ref #2)
2
Part #4YR-26241-03
Grip Assy (Ref #3)
3
Part #1WS-26240-01
End, Grip (Ref #4)
4
Part #5RU-26246-00
End, Grip (Ref #4)
4
Part #5RU-26246-00
End, Grip (Ref #4)
4
Part #5RU-26246-00
End, Grip (Ref #4)
4
Part #5RU-26246-00
Throttle Cable Assy (Ref #5)
5
Part #BAT-26302-00
Clamp, wire (Ref #6)
6
Part #39P-2627E-00
CAP GRIP (Ref #7)
7
Part #4KG-26281-00
CAP GRIP (Ref #8)
8
Part #3XW-26282-01
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91317-05035
Wire, clutch (Ref #10)
10
Part #BAT-26335-00
Bracket (Ref #11)
11
Part #1WS-2612E-00
Bolt,hex. Socket Button (Ref #12)
12
Part #90111-06101
Clamp (Ref #13)
13
Part #90464-16023
CLAMP (Ref #14)
14
Part #90464-13073
CLAMP (Ref #14)
14
Part #90464-13073
CLAMP (Ref #14)
14
Part #90464-13073
CLAMP (Ref #14)
14
Part #90464-13073
Rear View Mirror Assy (Left) (Ref #15)
15
Part #B7N-26280-00
. CAP (Ref #16)
16
Part #5PS-26133-20
Rear View Mirror Assy (Right) (Ref #17)
17
Part #B7N-26290-00
