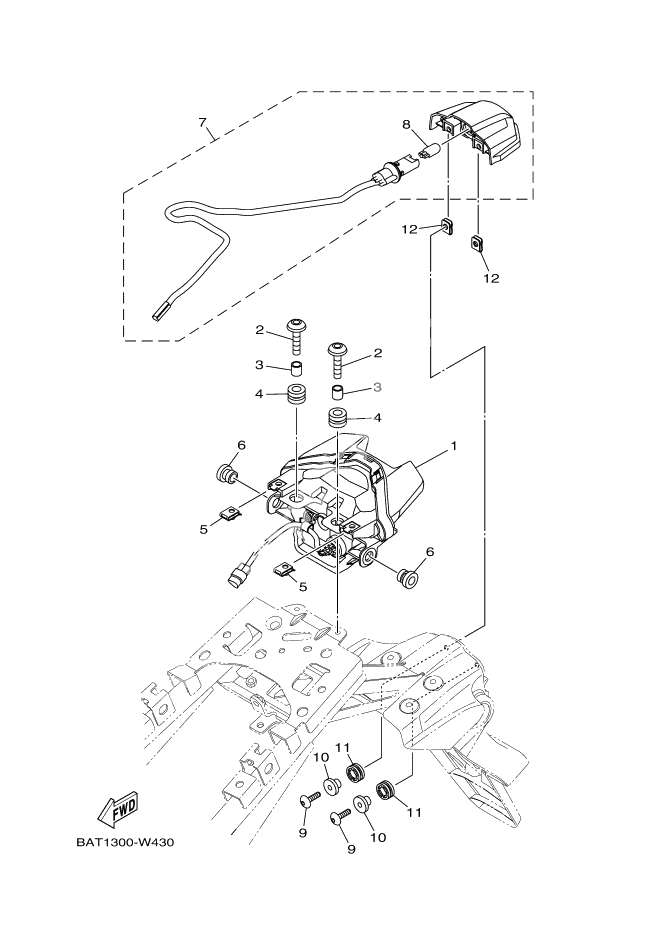

Taillight
Taillight
Taillight Unit Assy (Ref #1)
1
Part #B4C-84710-01
BOLT (Ref #2)
2
Part #90111-06137
BOLT (Ref #2)
2
Part #90111-06137
BOLT (Ref #2)
2
Part #90111-06137
BOLT (Ref #2)
2
Part #90111-06137
COLLAR (Ref #3)
3
Part #90387-067V1
COLLAR (Ref #3)
3
Part #90387-067V1
COLLAR (Ref #3)
3
Part #90387-067V1
COLLAR (Ref #3)
3
Part #90387-067V1
GROMMET (Ref #4)
4
Part #90480-13001
GROMMET (Ref #4)
4
Part #90480-13001
GROMMET (Ref #4)
4
Part #90480-13001
GROMMET (Ref #4)
4
Part #90480-13001
Nut, Spring (Ref #5)
5
Part #90183-05042
Nut, Spring (Ref #5)
5
Part #90183-05042
Nut, Spring (Ref #5)
5
Part #90183-05042
Nut, Spring (Ref #5)
5
Part #90183-05042
Grommet (Ref #6)
6
Part #90480-10016
Grommet (Ref #6)
6
Part #90480-10016
Grommet (Ref #6)
6
Part #90480-10016
Grommet (Ref #6)
6
Part #90480-10016
Licence Light Unit Assy (Ref #7)
7
Part #2PN-84745-01
. BULB (12V-5W) (Ref #8)
8
Part #5DM-84347-00
Bolt,hex. Socket Button (Ref #9)
9
Part #90111-05026
Bolt,hex. Socket Button (Ref #9)
9
Part #90111-05026
Bolt,hex. Socket Button (Ref #9)
9
Part #90111-05026
Bolt,hex. Socket Button (Ref #9)
9
Part #90111-05026
Collar (Ref #10)
10
Part #90387-05044
Collar (Ref #10)
10
Part #90387-05044
Collar (Ref #10)
10
Part #90387-05044
Collar (Ref #10)
10
Part #90387-05044
Grommet (Ref #11)
11
Part #90480-14017
Grommet (Ref #11)
11
Part #90480-14017
Grommet (Ref #11)
11
Part #90480-14017
Grommet (Ref #11)
11
Part #90480-14017
Nut, Spring (Ref #12)
12
Part #90183-05076
Nut, Spring (Ref #12)
12
Part #90183-05076
Nut, Spring (Ref #12)
12
Part #90183-05076
Nut, Spring (Ref #12)
12
Part #90183-05076
