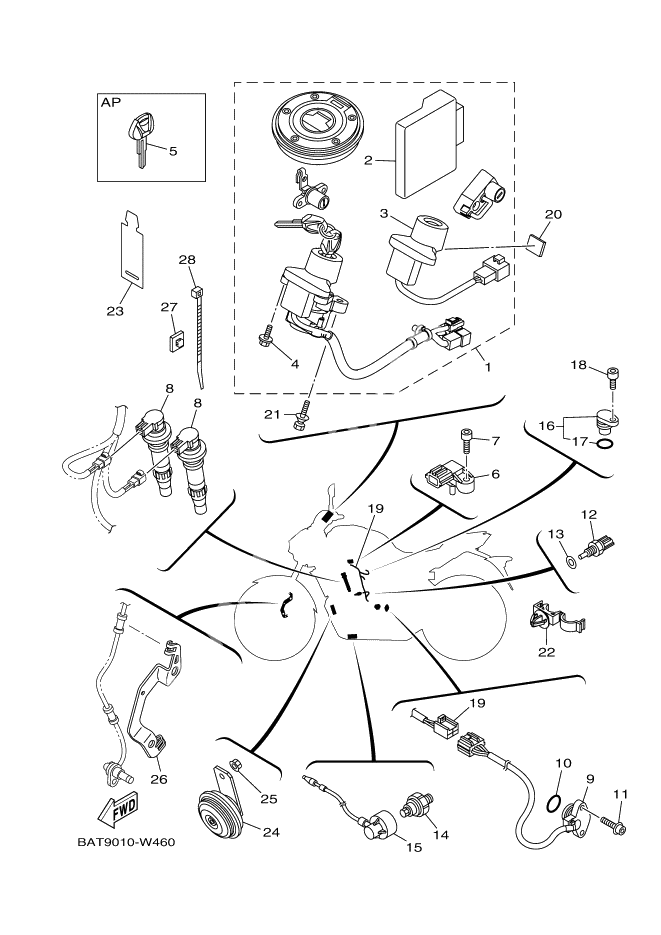

Electrical 2
Electrical 2
Main Sw. Immobilizer Kit (Ref #1)
1
Part #BAT-W8250-30
. ENGINE CONTROL UNIT ASSY (Ref #2)
2
Part #BAT-8591A-30
. IMMOBILIZER. UNIT COMP. (Ref #3)
3
Part #BAT-8255P-00
. SCREW (Ref #4)
4
Part #5SL-82113-01
BLANK KEY (Ref #5)
5
Part #5SL-82511-08
. SENSOR, PRESSURE (Ref #6)
6
Part #1WS-82380-00
Bolt, Hexagon Socket Head (Ref #7)
7
Part #91312-05020
IGNITION COIL ASSY (Ref #8)
8
Part #1WS-82310-00
IGNITION COIL ASSY (Ref #8)
8
Part #1WS-82310-00
IGNITION COIL ASSY (Ref #8)
8
Part #1WS-82310-00
IGNITION COIL ASSY (Ref #8)
8
Part #1WS-82310-00
NEUTRAL SWITCH ASSY (Ref #9)
9
Part #1WS-82540-00
O-RING (Ref #10)
10
Part #93210-21001
Bolt, Hexagon Socket Head (Ref #11)
11
Part #90110-05067
サーモユニツト (Ref #12)
12
Part #4P9-83591-00
GASKET (Ref #13)
13
Part #90430-10004
Oil Pressure Switch Assy (Ref #14)
14
Part #1WS-82504-00
Lead Wire Assy (Ref #15)
15
Part #1WS-81315-00
Plug, Blind (Ref #16)
16
Part #3P6-15399-00
O-RING (Ref #17)
17
Part #93210-15566
Bolt, Hexagon Socket Head (Ref #18)
18
Part #91312-06016
Wire, Sub Lead (Ref #19)
19
Part #BAT-82309-00
Wire, Sub Lead (Ref #19)
19
Part #BAT-82309-00
Wire, Sub Lead (Ref #19)
19
Part #BAT-82309-00
Wire, Sub Lead (Ref #19)
19
Part #BAT-82309-00
Damper 2 (Ref #20)
20
Part #14B-28227-00
BOLT (Ref #21)
21
Part #90109-08195
CLAMP (Ref #22)
22
Part #90464-17003
Band (Ref #23)
23
Part #BAT-82591-00
Horn (Ref #24)
24
Part #1WS-83371-00
Nut, flange (Ref #25)
25
Part #95707-06500
Bracket, Reflector 2 (Ref #26)
26
Part #BAT-85122-00
Base, Mount (Ref #27)
27
Part #BAT-2288B-00
Clamp (Ref #28)
28
Part #90464-55002
