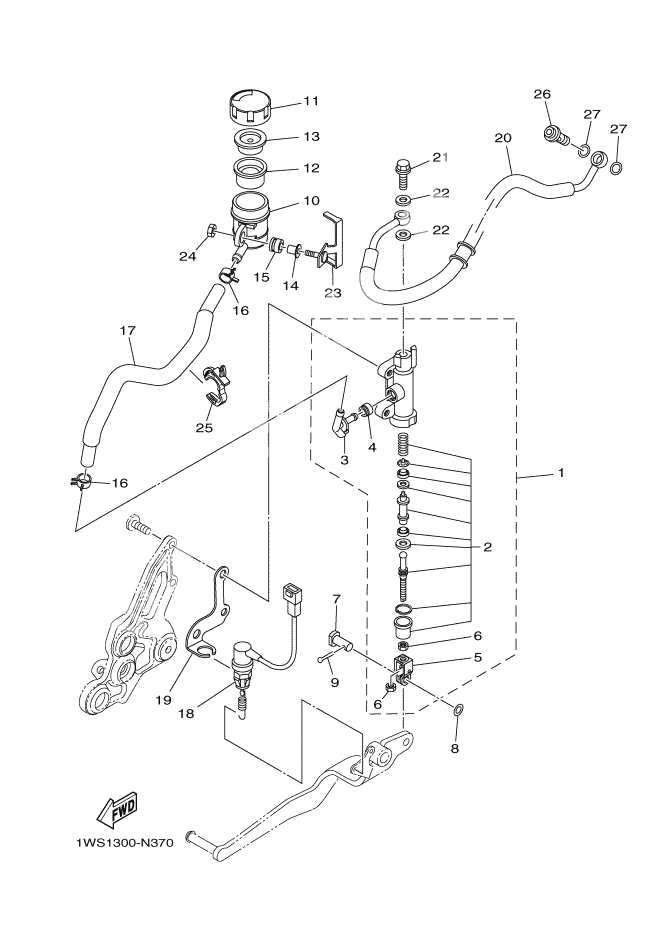

REAR MASTER CYLINDER
REAR MASTER CYLINDER
Rr. master cylinder assy. (Ref #1)
1
Part #2D1-2583V-00
. CYLINDER KIT, MASTER (Ref #2)
2
Part #5VX-W0042-51
. JOINT (Ref #3)
3
Part #2D1-2582A-00
. O-RING (Ref #4)
4
Part #4BP-2585F-01
. JOINT (Ref #5)
5
Part #4BP-27222-02
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
Pin, Clevis (Ref #7)
7
Part #90240-08005
Washer, Plate (Ref #8)
8
Part #90201-08070
Pin, Cotter (Ref #9)
9
Part #91401-20012
Tank, reservoir (Ref #10)
10
Part #14B-25894-00
Cap, Reservoir (Ref #11)
11
Part #2C0-25852-00
Diaphragm, Reservoir (Ref #12)
12
Part #2VN-25854-00
Bush,diaphragm (Ref #13)
13
Part #2VN-25855-00
Collar (Ref #14)
14
Part #90387-05028
Grommet (Ref #15)
15
Part #2C0-26326-00
Clip (Ref #16)
16
Part #90467-11044
Clip (Ref #16)
16
Part #90467-11044
Clip (Ref #16)
16
Part #90467-11044
Clip (Ref #16)
16
Part #90467-11044
Hose, Reservoir (Ref #17)
17
Part #1WS-25895-00
Stop Switch Assy (Ref #18)
18
Part #1WS-82530-00
STAY, STOP SWITCH (Ref #19)
19
Part #1WS-2144G-00
HOSE, BRAKE 5 (Ref #20)
20
Part #1WS-2581K-00
Bolt, Union (Ref #21)
21
Part #90401-10020
GASKET (Ref #22)
22
Part #90430-10005
GASKET (Ref #22)
22
Part #90430-10005
GASKET (Ref #22)
22
Part #90430-10005
GASKET (Ref #22)
22
Part #90430-10005
Holder, reserve tank (Ref #23)
23
Part #1WS-2582E-00
Nut, flange (Ref #24)
24
Part #95707-05500
Clamp (Ref #25)
25
Part #90464-17008
