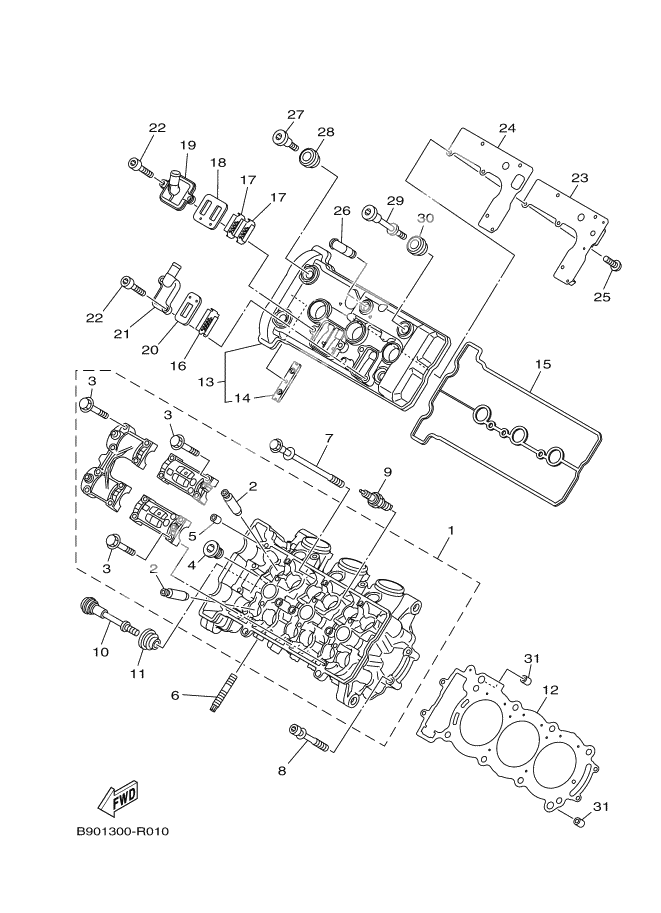

CYLINDER HEAD
CYLINDER HEAD
Cylinder head assy (Ref #1)
1
Part #B90-11101-09
. GUIDE, VALVE 1 (Ref #2)
2
Part #2C0-11133-11
. GUIDE, VALVE 1 (Ref #2)
2
Part #2C0-11133-11
. GUIDE, VALVE 1 (Ref #2)
2
Part #2C0-11133-11
. GUIDE, VALVE 1 (Ref #2)
2
Part #2C0-11133-11
. PLUG, STRAIGHT SCREW (Ref #4)
4
Part #90340-18002
. PIN, DOWEL (Ref #5)
5
Part #91808-16023
. BOLT, STUD (Ref #6)
6
Part #90116-08087
Bolt, With Washer (Ref #7)
7
Part #90119-09015
Bolt (Ref #8)
8
Part #90109-061F7
プラグ,スパーク (NGK R CPR9EA-9) (Ref #9)
9
Part #94703-00431
Bolt (Ref #10)
10
Part #90109-06293
RUBBER, MOUNT 1 (Ref #11)
11
Part #5VY-1111G-00
GASKET, CYLINDER HEAD 1 (Ref #12)
12
Part #B90-11181-00
COVER, CYLINDER HEAD 1 (Ref #13)
13
Part #1RC-11191-00
GUIDE, STOPPER 2 (Ref #14)
14
Part #5BE-12241-00
GASKET, HEAD COVER 1 (Ref #15)
15
Part #1RC-11193-01
PLATE (Ref #16)
16
Part #5JW-1482K-01
PLATE (Ref #17)
17
Part #5VY-1482K-00
PLATE (Ref #17)
17
Part #5VY-1482K-00
PLATE (Ref #17)
17
Part #5VY-1482K-00
PLATE (Ref #17)
17
Part #5VY-1482K-00
REED VALVE ASSY (Ref #18)
18
Part #5SL-14890-00
CAP, CASE (Ref #19)
19
Part #5SL-14899-00
REED VALVE ASSY (Ref #20)
20
Part #5PS-14890-00
Cap, case (Ref #21)
21
Part #5JW-14889-00
. BOLT, HEXAGON SOCKET HEAD (Ref #22)
22
Part #90110-06175
. BOLT, HEXAGON SOCKET HEAD (Ref #22)
22
Part #90110-06175
. BOLT, HEXAGON SOCKET HEAD (Ref #22)
22
Part #90110-06175
. BOLT, HEXAGON SOCKET HEAD (Ref #22)
22
Part #90110-06175
プレート,ブリーザ (Ref #23)
23
Part #B90-11165-00
Gasket, breather cover (Ref #24)
24
Part #1RC-11169-00
Screw (Ref #25)
25
Part #90149-05037
PIPE, BREATHER 2 (Ref #26)
26
Part #4TR-11167-00
BOLT (Ref #27)
27
Part #90109-066F0
Bolt (Ref #29)
29
Part #90109-06271
Pin, Dowel (Ref #31)
31
Part #99530-12016
Pin, Dowel (Ref #31)
31
Part #99530-12016
Pin, Dowel (Ref #31)
31
Part #99530-12016
Pin, Dowel (Ref #31)
31
Part #99530-12016
