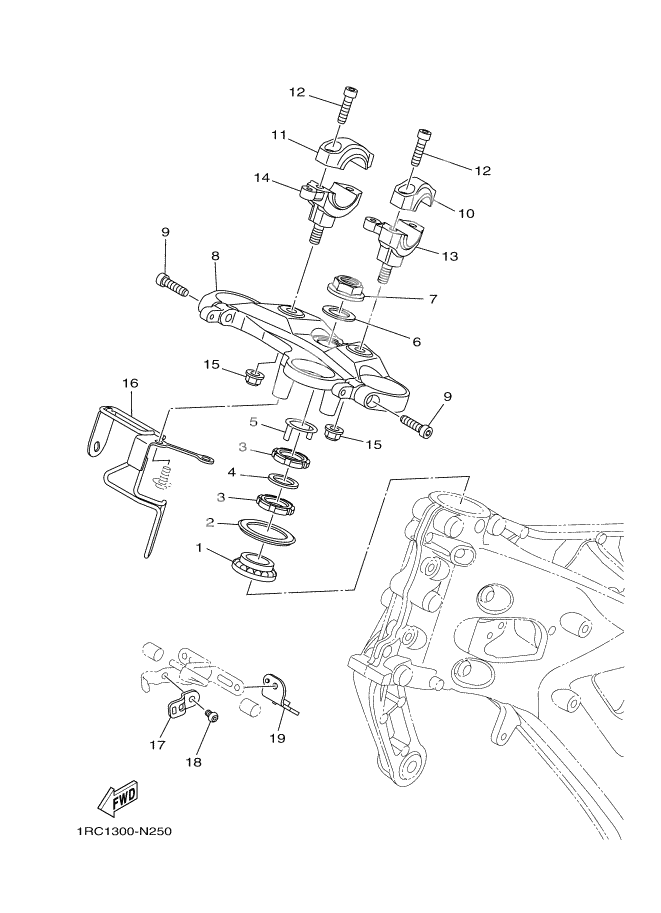

STEERING
STEERING
Bearing (Ref #1)
1
Part #93399-99931
COVER, BALL RACE 1 (Ref #2)
2
Part #5VX-23415-00
NUT (Ref #3)
3
Part #90179-25004
NUT (Ref #3)
3
Part #90179-25004
NUT (Ref #3)
3
Part #90179-25004
NUT (Ref #3)
3
Part #90179-25004
Washer, Plate (Ref #4)
4
Part #90202-26142
Washer, special (Ref #5)
5
Part #26H-23418-01
Washer, Plate (Ref #6)
6
Part #90201-22018
Nut, Special (Ref #7)
7
Part #1RC-23393-00
Crown, Handle (Ref #8)
8
Part #1RC-23435-30
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91314-08030
Holder, Handle Upper (Ref #10)
10
Part #1RC-23441-11
HOLDER, HANDLE UPPER 1 (Ref #11)
11
Part #1RC-2344A-11
ホルダー 1 (Ref #13)
13
Part #1RC-24847-11
HOLDER 2 (Ref #14)
14
Part #1RC-24848-11
NUT, S/L FLANGE (Ref #15)
15
Part #95602-10200
NUT, S/L FLANGE (Ref #15)
15
Part #95602-10200
NUT, S/L FLANGE (Ref #15)
15
Part #95602-10200
NUT, S/L FLANGE (Ref #15)
15
Part #95602-10200
GUIDE, CABLE (Ref #16)
16
Part #1RC-23389-00
HOLDER, BRAKE HOSE 2 (Ref #17)
17
Part #5SL-25876-00
BOLT, BUTTON HEAD (Ref #18)
18
Part #92017-06012
ブラケツト,ホーン (Ref #19)
19
Part #1RC-23377-00
