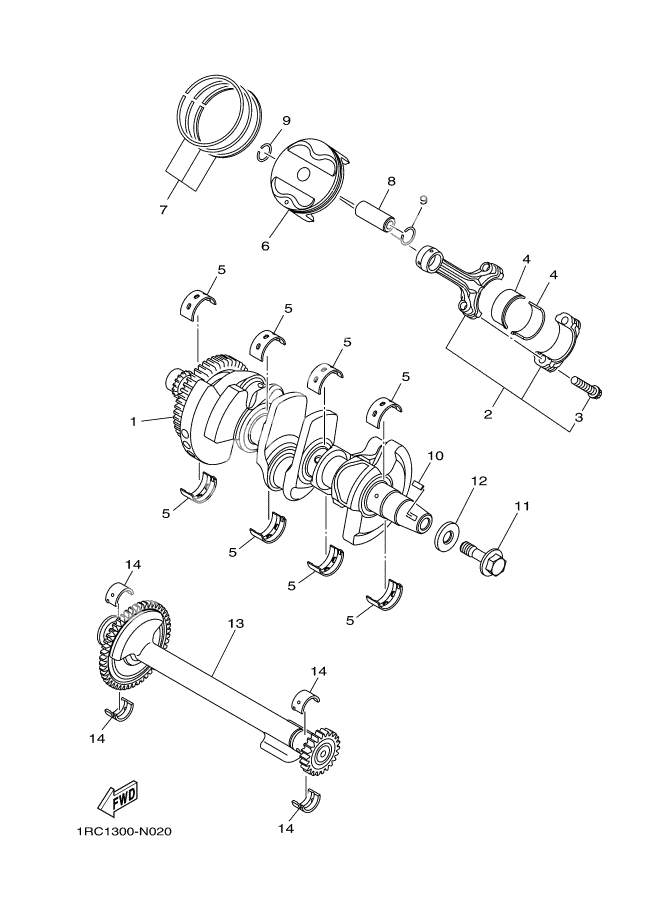

CRANKSHAFT AND PISTON
CRANKSHAFT AND PISTON
CRANKSHAFT ASSY (Ref #1)
1
Part #1RC-11400-00
Connecting Rod Assy (Ref #2)
2
Part #1RC-11650-00
. BOLT, CONNECTING ROD (Ref #3)
3
Part #1RC-11654-00
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-20
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-20
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-20
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-20
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-30
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-30
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-30
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-30
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-10
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-10
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-10
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-10
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-00
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-00
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-00
Plane Bearing, Connecting Rod (Ref #4)
4
Part #1RC-11656-00
PISTON (STD) (Ref #6)
6
Part #1RC-11631-00
PISTON RING SET (STD) (Ref #7)
7
Part #1RC-11603-00
Pin, Piston (Ref #8)
8
Part #39P-11633-00
Circlip (Ref #9)
9
Part #93450-18157
Circlip (Ref #9)
9
Part #93450-18157
Circlip (Ref #9)
9
Part #93450-18157
Circlip (Ref #9)
9
Part #93450-18157
KEY, WOODRUFF (Ref #10)
10
Part #90280-05029
Bolt, Flange (Ref #11)
11
Part #90105-126A8
Washer, Plate (Ref #12)
12
Part #90201-12008
BALANCER ASSY (Ref #13)
13
Part #1RC-11500-00
